Portable Spectrum Analyzer 200mhz Analysis Bandwidth Plentiful Function Option - China

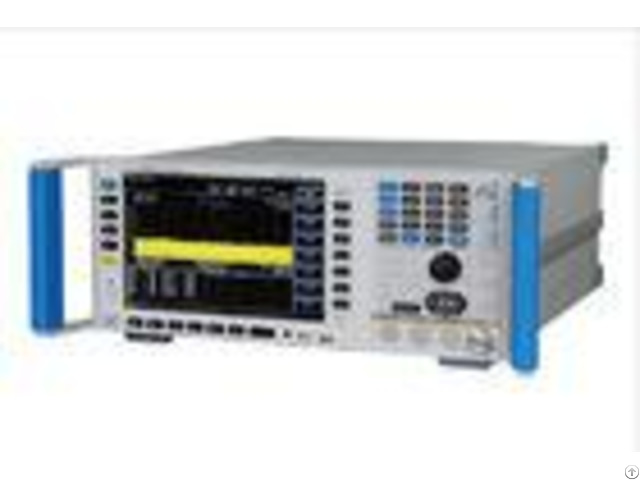

AV4051 series spectrum analyzer Overviews: AV4051 series spectrum analyzer has the advantages of broad bandwidth, high solution, high dynamic range, high precision, low phase noise and fast measurement speed.

AV4051 has a wide range of applications as follows: aviation, aerospace, communication, radar and navigation.

200MHz analysis bandwidth (1) Flexible Bandwidth to choose from 10Hz to 200MHz; (2) 10MHz standard analysis bandwidth (40MHz/200MHz, options); (3) 64M sample memory depth (256M, options); (4) Seamless capture time can be up to a few hours from 1.28 seconds.

Excellent testing performance (1) The best measurement sensitivity: -152dBm/Hz; (2) Measurement sensitivity at 50Hz: -127dBm/Hz; (3) Phase noise: -115dBc/Hz carrier 1GHz @ 10kHz offset; (4) All digital IF design.

Full spectrum analysis (1) Continuous scanning and FFT step scan; (2) Fastest sweep time of zero scan: 1s; (3) Counting Resolution: 1mHz; (4) Scan Points: 10130001; (5) Up to six tracks; (6) 6 kinds of detection methods, three kinds of average type; (7) Support time gate measurement; (8) Occupied bandwidth, channel power, adjacent channel power testing; (9)Statistical power, burst power, harmonic distortion, third-order intermodulation, spurious emission testing.

Specification - - - - Model | AV4051 | AV4051A/AV4051B/AV4051C/A V4051D/AV4051E/AV4051F/AV 4051G | Frequency range | 3Hz40GHz | 3Hz4GHz/8GHz/13.2GHz/18GH z/26.5GHz/45GHz/50GHz | 10MHz Precise frequency reference | Frequency accuracy: (last calibration data aging ratetemperature stabilitycalibration accuracy) Aging rate: 110-9/day, 110-7/year Temperature stability: 110-8(20C ~ 30C) 510-8(0C ~ 55C) Calibration accuracy: 7 10-8 | Frequency readout accuracy (sweep) | (readout frequency reference error0.25% span5% resolution bandwidth2Hz0.5 horizontal resolution) *: horizontal resolution = span/(sweep points -1) | Frequency counting accuracy (counting) | (Frequency read out frequency reference error0.1Hz) | Bandwidth | Range: 0Hz, 10Hz4GHz/8GHz/13.2GHz/18G Hz/26.5GHz/45GHz/50GHz Accuracy: (0.2%spanspan/(s weep point number-1)) | Sweep time | (Bandwidth 10Hz): 1ms4000s (Bandwidth =0Hz): 1us6000s | Resolution bandwidth | Range: 1Hz3MHz (10% step), 4, 5, 6, 8MHz Conversion Uncertainty: 0.5dB | Video bandwidth | 1Hz3MHz (10% step), 4, 5, 6, 8MHz | Signal analysis Bandwidth | 10Hz10MHz | Memory depth | 64MSamples(extend 256MSamples) | Trigger | Free, power, video, external level (front panel), external level (rear panel), burst power | Detection type | Normal, positive peak, negative peak, sampling, average, root mean square | Average type | Video average, Power average, Voltage average | Sideband noise | < -91dBc/Hz 100Hz < -105dBc/Hz 1kHz < -115dBc/Hz 10kHz < -117dBc/Hz 100kHz | Residual FM | < 1Hz N(N is harmonic number) | Average noise level | -140dBm/Hz 10MHz200MHz -152dBm/Hz 200MHz1GHz -150dBm/Hz 1GHz3GHz -147dBm/Hz 3GHz4GHz -144dBm/Hz 4GHz9GHz -140dBm/Hz 9GHz18GHz -138dBm/Hz 18GHz26.5GHz -130dBm/Hz 26.5GHz40GHz -127dBm/Hz 40GHz50GHz | Frequency response and absolute amplitude accuracy(10dB attenuation, 20C ~ 30C) | Frequency response: < 1.0dB 3Hz4GHz < 2.0dB 49GHz < 2.0dB 918GHz < 3.0dB 1826.5GHz < 3.5dB 26.550GHz absolute amplitude accuracy: 0.3dB 300MHz (0.3dBfrequency response) | 1dB gain compression point (mixer input level) | 0dBm 20MHz4GHz 3dBm 4GHz9GHz 0dBm 9GHz50GHz | TOI distortion (mixer level -30dBm) | < -84dBc 10MHz 4GHz < -89dBc 4GHz 9GHz < -84dBc 9GHz 50GHz | Remaining response | < -90dBm 1MHz50GHz | Test speed | Local measurement update rate: 90 times/sec Center frequency tuning and conversion rates: 50ms 20Hz4GHz 85ms 4GHz26.5GHz 120ms 26.5GHz50GHz | Dimensions | width height depth= 498mm192mm532mm (Including handles, feet, foot) width height depth= 426mm177mm460mm(Including handles, feet, foot) | Weight | About 25kg | Input connector | AV4051/AV4051F/AV4051G: 2 - 4mm(male), impedance 50ohm AV4051A/AV4051B/AV4051C/A V4051D/AV4051E: N: type(fem ale), impedance 50ohm | - - - - Flexible analog and digital output interface (1) 10MHz140MHz variable IF output; (2) Demodulated output, support AM / FM demodulation and IQ demodulation; (3) Detection output, the output video signal scanning synchronization; (4) Digital signal output, 1X or 4X fiber output channel, provides broadband IQ data of real-time recording from the interface; (5) External 1.5TB12TB data logger, SSD and HDD two media types.
