Professional Neware Battery Cycler Tester 100v 300a Bms Communication Support - China

Neware IGBT Battery Pack Tester 100V300A BMS Communication support Pack voltage up to 100V

Pack charge and discharge current up to 300A

Max power up to 300kW

Customized and standard solutions are available.

Brief Introduction:

Neware IGBT Series is designed for testing high power battery packs, and applied to electric vehicles, military technology, and stationary grid storage demand high-reliability and safe testing environments.

IGBT offers battery testing system for basic charge/discharge cycling, simulation application.

It brings you higher energy efficiency, smaller space and much convenient to utilize the existing gauge integrated in BMS/BMU.

Primary Applications:

Life Cycle Testing: Charge and discharge battery cycle testing

Simulation of real-world test profiles

R&D of battery packs for electric vehicle and grid storage applications

Validate internal battery management system using CANBus protocols Specifications: - - - -

AC Input | AC 380V10% 50Hz | Single-phase Power | 30 | KW | Single-phase Current | 51 | A | Input Power | 33 | KW | Resolution | 1s | Voltage | Range | Charge: 10V~100V Discharge: 10V~100V | Accuracy | 0.1% of FS | Stability | 0.1% of FS | Current | Range | Charge: 1.5A~300A Discharge: 1.5A~300A | Accuracy | 0.1% of FS | Stability | 0.1% of FS | Power | Output Power Per Channel | 30KW | Stability | 0.2% of FS | - - - - For some battery Packs without BMS, our auxiliary voltage and temperature sensors will help to detect the voltage and temperature of every single cell inside the battery pack.

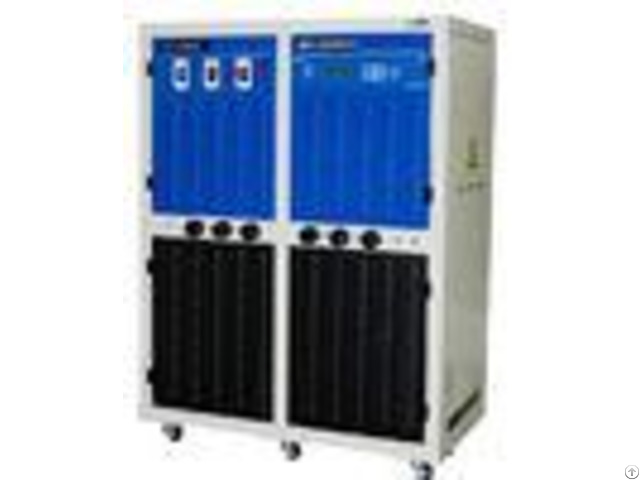

Equipment Pictures: Why Us:

# # 19 years' battery testing system research and manufacture experience.

# Over 118 R&D staffs, providing reliable and flexible testing solutions.

# Our material providers including Texas Instruments(ADS/DAC/DSP/M CU), TDK(Inductance/Capacitor/ Resistance), Infineon(IGBT) and more.

# Have shipped 60, 000 sets of equipment aboard.

# More than 16, 000 customers all around the world.
