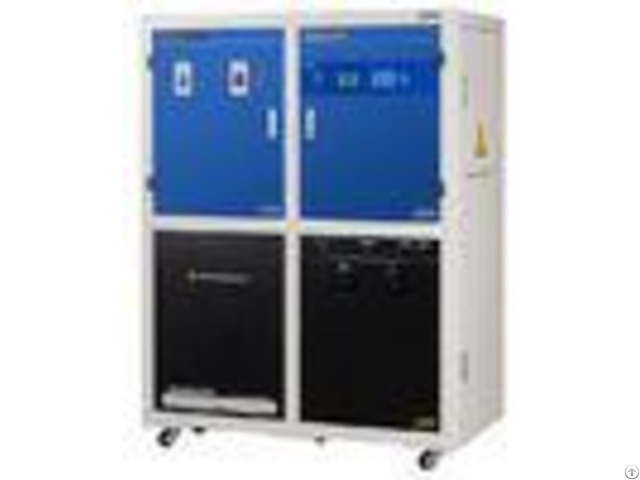

Regenerative Battery Pack Test System 20kw 2ch High Precision Bms Data Recording - China

Neware 100V 100A Regenerative Battery Pack Test System Pack voltage up to 100V Pack charge and discharge current up to 100A 2 Channel or 4 Channel per unit, Max power up to 20kW Customized and standard solutions are available.

Regenerative rate >85% Brief Introduction: Neware IGBT Series is designed for testing high power battery packs, and applied to electric vehicles, military technology, and stationary grid storage demand high-reliability and safe testing environments.

IGBT offers battery testing system for basic charge/discharge cycling, simulation application.

It brings you higher energy efficiency, smaller space and much convenient to utilize the existing gauge integrated in BMS/BMU.

It has an energy regenerative function to greatly reduce power consumption during discharge, and ensure a stable power grid without generating harmonic pollution on other devices Battery Applications # Battery Pack Test # Battery Module Test # Energy storage system # Motor driver # Power control system Primary Applications: Life Cycle Testing: Charge and discharge battery cycle testing Simulation of real-world test profiles R&D of battery packs for electric vehicle and grid storage applications Validate internal battery management system using CANBus protocols Features: # Regenerative battery energy discharge, efficiency 85% - Energy saving - Environment protection - Low heat generate # Channels paralleled for higher currents # Charge/discharge modes (CC, CV, CP) - Voltage Range: 100V, 200V, 300V, 500V, 750V per channel - Current Range: up to 1000A (per channel) # Driving cycle simulation # High precision measurement # Fast current conversion # Smooth current without over shoot # Test data analysis function # Data recovery protection (after power failure) # Independent protection of multi-channel # BMS data recording # Thermal chamber control integration Specifications: - - - - Output Voltage | CV Output Range | 10V~100V | Min Discharge Voltage | 10V | Accuracy | 0.1% of FS | Stability | 0.1% of FS | Output Current | Output Range | 0.5A~100A | Accuracy | 0.2% of FS | CV Cut-off Current | 0.2A | Stability | 0.1% of FS | - - - - For some battery Packs without BMS, our auxiliary voltage and temperature sensors will help to detect the voltage and temperature of every single cell inside the battery pack.

Why Us: # # 19 years' battery testing system research and manufacture experience.

# Over 118 R&D staffs, providing reliable and flexible testing solutions.

# Our material providers including Texas Instruments(ADS/DAC/DSP/M CU), TDK(Inductance/Capacitor/ Resistance), Infineon(IGBT) and more.

# Have shipped 60, 000 sets of equipment aboard.

# More than 16, 000 customers all around the world.
