Regenerative Battery Pack Tester Ce 4004 60v100a Smooth Current For Thermal Test - China

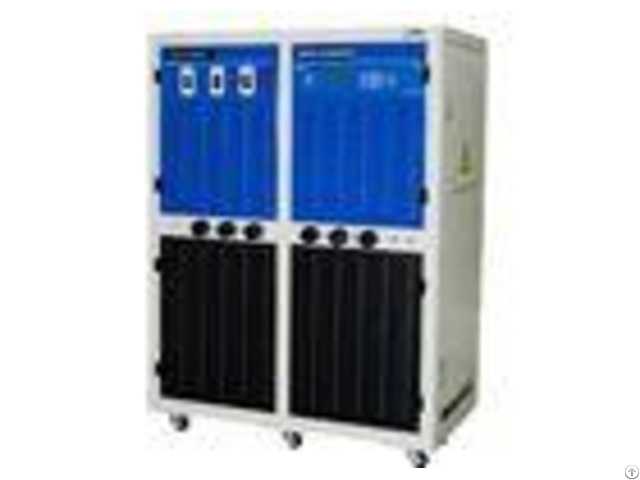

Neware Regenerative Battery Pack Test System Model CE-4004-60V100A Pack voltage up to 60V Pack charge and discharge current up to 100A Max power up to 240kW Regenerative rate >85% Brief Introduction: Neware's CE-4004-60V100A is a high precision system specifically designed for secondary battery modules and pack tests.

Accurate sources and measurements ensure the test quality is reliable.

This model equipment is Neware's CE-4004-60V100A system is equipped with multiple independent channels to support dedicated charge / discharge tests, on multiple battery modules / packs.

The channels can easily be paralleled to support higher current requirements.

There are multiple safety features in the software, Over Voltage Protection, Over Current Protection check and Over Temperature Protection to ensure protected charge / discharge testing.

System Structure Voltage and Current Specifications: - - - - Output Voltage | CV Output Range | 0.3V~60V | Min Discharge Voltage | 0V | Accuracy | 0.1% of FS | Stability | 0.1% of FS | Output Current | Output Range | 0.5A~100A | Accuracy | 0.1% of FS | CV Cut-off Current | 0.2A | Stability | 0.1% of FS | - - - - - - - - Charge | Charge Mode | CC, CV, CCCV, CP | End Condition | Voltage, Current, t, Capacity, -V | Discharge | Discharge Mode | CC, CP, CR | End Condition | Voltage, Current, t, Capacity, -V | - - - - Battery Pack: # EV battery module # Electric scooter/ bike # UPS # Electric gardening tools # Energy storage battery # Power tools # Car battery # Lead-acid battery Applications: # Learning test for manufactory # Life cycle test # DCIR test # Capacity test # Performance test # Reliability test # Over charge/dischargetest # Thermal test Features: # Bi-directional smart DCDC Converter- Align Synchronous Rectification with 32 bit high speed DSP processor with floating point arithmetic, to avoid the leakage in the process of energy converting # 2Bi-directional smart DCAC inverter - With High Frequency Rectifier Reversible SMR, achieving high power factor and low harmonic to guarantee clean grid network; # 3Enhance the performance and achieve cost-effective of products via temperature Run the channels: Select the channels to run, right click and select the Single Start, and then you can choose the work step type in the dropdown list, set the work step parameter and protection conditions, click the "start" to begin the test.

Customized report format Exports test reports in PDF, nda and XLS Graphical report function Report analysis Function: Users can create customized reports through the user-defined X and Y axis parameters.

Real-time browsing test reports of each channel - - - - Protection | Power-off data protection | Off-line operation mode | Customer-defined protection conditions: | Anti-reverse Protection | - - - - The regenerative high power equipment is full Sinusoidal Loop, low Harmonic, high Power Factor, high Efficiency
