Rf Signal Generators Power Output Of 7dbm 135dbm Update With Usb Disk - China

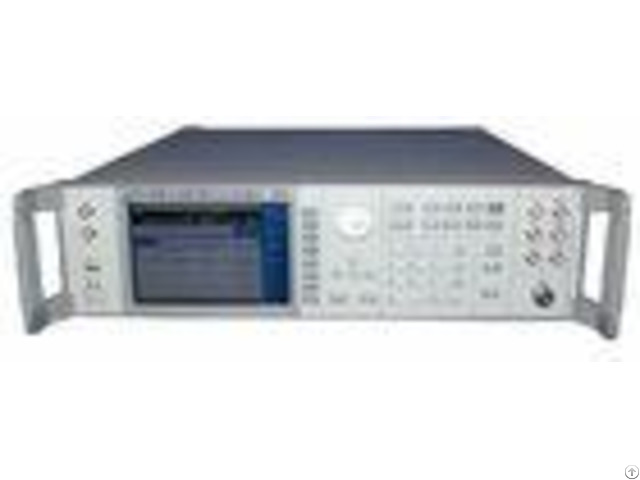

AV1442 Series RF Signal Generators Product Overview: AV1442 RF Signal Generators are completely new products designed and developed for communication applications by using the latest technology, covering all commonly-used ranges of radio frequency.

Designed with modular structure, all Chinese interfaces, large LCD menu control, extremely low phase noise of output signal, high frequency resolution and accuracy and wide output dynamic range, they are available in abundant analog modulation, digital modulation and program control functions etc.

This product can provide complex high-performance analogue signals for testing on communication and radar equipment in product research & development, production, detection and maintenance, etc.

Main Characteristics: 1 - Extremely low phase noise and high pure spectrum ; 2 - Power output of +7dBm~-135dBm ; 3 - Available in abundant analogy modulation and digital modulation functions ; 4 - Optional 1Hz~1MHz low frequency signal generator ; 5 - Chinese/English operation interfaces ; 6 - List sweep and step sweep ; 7 - Update with USB Disk .

Technical Specifications: - - - - Frequency Range | AV1442: 250kHz~6GHz AV1442A: 250kHz~3GHz | Frequency | N | 250kHz f 250MHz | 1 | 250MHz 60dB | Pulse modulation rise/fall time | <150ns | Internally leveled min.

pulse width | 2s | Level hold (ALC is off) | 0.5s | Amplitude Modulation5 | Modulation mode: exponential mode, linear mode Modulation rate (3 dB bandwidth, 30% modulation depth): DC~100kHz Max.

amplitude modulation depth: 90% Accuracy (1kHz modulation rate, 300Hz~3kHz demodulation bandwidth): (6%set value+1%) Distortion (1kHz modulation rate, 30% depth, linear mode, total harmonic distortion): <1.5% | Frequency Modulation5 | Modulation rate (3 dB bandwidth, N100kHz frequency modulation offset): DC~1MHz Max.

frequency modulation offset (typical value): N1MHz Accuracy (1kHz modulation rate, 300Hz~3kHz demodulation bandwidth, frequency modulation offset
