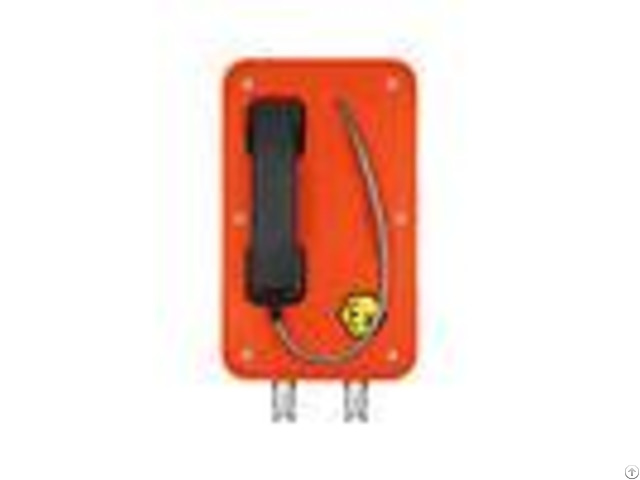

Robust Industrial Explosion Proof Telephone Weatherproof With Atex Certification - China

Robust Industrial Speed-Dial Analog EX-proof Telephone with ATEX Certification This Speed-dial Analog Explosion-proofTelephone is fully contained within a corrosion resistant cast aluminium weatherproof case which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

Extremely easy to install.

The cable entrance is on the bottom of the phone to prevent from artificial damage, while the button is weather and vandal resistant.

This product has the following explosion protection: II 2G Rx e ib [ib] mb IIC T4 Gb III 2D Ex ib [ib] tb IIIC T135 -40 C Ta +60 C/+40C Zone 1, 2, 22 MAIN FEATURES -Corrosion resistantaluminum alloy die casting housing - With NPT conduit entries and Type 3 /IP67environmental ratings -Certificated for use in Hazardous areas ofGas Group IIB/IIA -Power supply: Phone Line Powered - Programmable for auto-dial -Handset with Noise canceling microphone, for effective communication from noisy areas -Hermetically sealed non-contact hook sensing switch improves system reliability -Captive cover screws prevent loss during installation OPTIONAL - Add Horn & Lamp on the top - Key lockable latch - Upper & lower internal mounting plates - Flat label area or custom embossed logo on door - Vandal resistant screws for upper mounting plate APPLICATIONS 1 - Suitable for explosive gas atmospheres Zone 1, 2, 22 - 2 - Suitable for temperature class T1 ~ T6 - 3 - Widely used in oil exploration, chemical, military, pharmaceutical, oil refining and other hazardous environments and depots, offshore oil platform, oil tankers and other related industrial application, etc.

TECHNICAL SPECIFICATION - - - - Analogue Version | Power Supply | From the analogue telephone network | Supply Voltage | 24 VDC to 65 VDC | Supply Current | 20 mA DC to 100 mA DC | Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) | Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.

23 - | - - - - - - - - Ambient conditions | Protection type | IP 66 as per EN60529 | Operating temperature | -40C to +70C | Storage temperature | -45C to +85C | - - - - PACKAGE Unit Size: 246*339*109 mm (H*W*D) Carton Dimension: 200 * 300 *440 mm (H * W * D) Packaging materials: pearl cotton, carton Net Weight: 7 KG Gross weight: 8 KG
