Single Battery Cycle Life Tester 5v6a Low Pc Dependence 443 330 48mm - China

price: check with company for price

Single Battery Cycle Life Tester 5v6a Low Pc Dependence 443 330 48mm

Products Photos Catalog Battery Cycle Life Photos Catalog

Single Battery Cycle Life Tester 5V6A Charge and Dicharge Testing CT-3008n-5V6A-S1 Specifications: - - - - Description | Product Specification | AC Input | AC 110V10% 50Hz / AC 220V10% 50Hz | Power | 400 | W | Resolution | AD: 16bit; DA: 16bit | Input Impedance | 1M | Voltage | CV Output | 0.1V-4.9V | Discharge Min Voltage | 1.2V | Accuracy | 0.05% of FS | Stability | 0.02% of FS | Current | Range | 0.003~6A | Accuracy | 0.05% of FS | Stability | 0.02% of FS | Power | Output Power Per Channel | 30W | Stability | 0.03% of FS | Time | Rise Time | 20ms (0~Full Range) | Step Time | (365*24) hour/step | Time Format 00: 00: 00 (h: min: s) | Data Acquisition | Intervals | Time interval t: (1s~60000s) | Voltage interval U: (10mV~5V) | Current interval I: (12mA~6000mA) | Frequency | 1Hz | Charge | Modeof Operation | CC, CV, CC & CVC, CP, CR | End Conditions | Voltage, Current, Test Time, Capacity | Discharge | Modeof Operation | CCD, CPD | End Conditions | Voltage, Current, Test Time, Capacity | - - - - Brief Introduction: BTS 3000 is the largest output series up to now.

It is reliable and time-tested for battery capacity grading and performance testing solutions.

And since 2012, our R&D team of BTS-9000 series start to update the former popular BTS-3000 series, and launch the BTS-3000n in 2005 to replace the 3008 series.

What is new with BTS-3000n series? BTS-3000n use the same software with BTS-9000, which is more user-friendly than BTS-3000 - At the same time, the key features of the hardware is improved based on BTS-3000 - Improved Features: 0.05%FS accuracy Ethernet communication Low PC dependence Offline mode Brand new bundled software Comparison Sheet of old BTS-3000 and new BTS-3000n: - - - - Specifications | BTS3000-5V6A | BTS3000n-5V6A | Current output ranges | 30mA-6A | 3mA-6A | Accuracy | 0.1%FS | 0.05%FS | Data acquisition frequency | 1Hz | 1Hz | Charge fuctions | CC, CV, CCCV, CP | CC, CV, CCCV, CP, CR | Discharge functions | CC, CP, CR | CC, CP, CR, CV | Communication | COM port(serial port) | Ethernet | Offline mode | No | Yes | Offline data storage | No | 1GB | Software | TC5.3, stopped updating | BTS9, keep updating | - - - - BTS-3000n present models: CT-3008n-5V0.1A-S, CT-3008n-5V0.5A-S CT-3008n-5V1A-S, CT-3008n-5V3A-S CT-3008n-5V6A-A, CT-3008n-5V6A-S, CT-3008n-5V6A-S-U The Model Code ending with "S" and "A" represent the 2 machine Universal clamp styles, "S" is for metal cased cell use, and "A" is for Aluminum shell battery use.

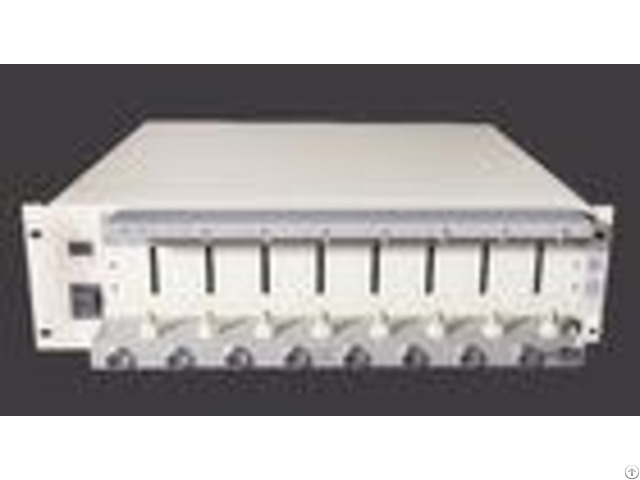

Equipment Pictures:


Company Contact:


  • Phone: 86-755-83109966

  • Address: 15/F, Tower 3, Excellence City, No.128, Zhongkang Rd., Shenzhen, CHINA 518049, Shenzhen , guangdong , China

  • Email: Email


Published date: March 19, 2018

  • Business Description: Introduced to the market in 2006, the most cost-competitive cell and battery test equipment, BTS3000 is now the most popular type in the battery testing field, and it serves for research institutes, universities and battery manufacturers all around the world.
