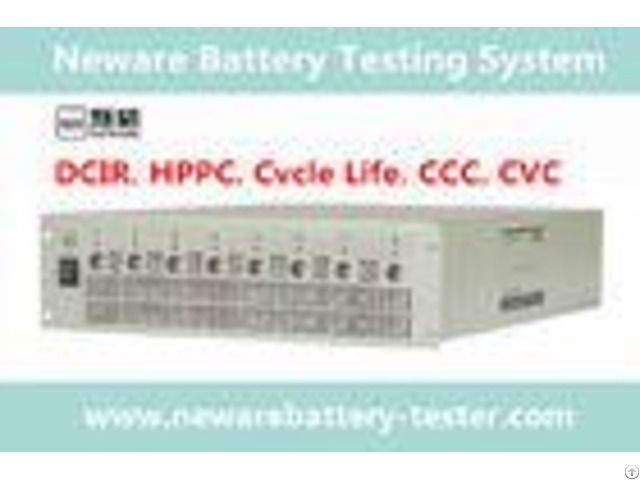

Ultra High Precision Neware Battery Tester 10v 10a Dcir And Pulse Test Supported - China

Neware Battery Tester 10V / 10A DCIR and Pulse Test Supported Brief Introduction: Neware BTS-4000 series have thousands of models, which covers all kind of battery testing need.

Coin cell, single battery, and battery module can all find a perfect match model to do the charge and discharge test.

And for battery module test, we have a wide range of models for you to choose (0-800V, 0-1000A), and the typically used models include: 10V10A, 20V10A, 30V20A, 50V20A, 60V20A, 60V100A, 60V200A, 50V100A etc.

Specifications: - - - - Project Index | Parameter Index | Input Power | AC 220V 10% / 50Hz | resolution | AD: 16bitDA: 16bit | Input Resistance | 1M | Voltage | Per Channel Control Voltage Range | 0.05V~10V | Minimum discharge voltage | 2.5V | Accuracy | 0.1% of FS | Stability | 0.1% of FS | Current | Per Channel Current Range | 0.05A-10A | Constant current cut-off current | 0.02A | Accuracy | 0.1% of FS | Stability | 0.1% of FS | Power | Per Channel Output Power | 100 | W | Stability | 0.1% of FS | Time | Current Response Time | 1ms (0-Full Range) | Step Time Range | (365*24 )hour/step, Time Form Support 00: 00: 00(h, min: s, ms) | Data Recording | Record Condition | Timet: 100ms | VoltageU: 20mV | CurrentI: 20mA | Record Frequency | 10Hz | Charge | Charge Mode | Constant Current Charge, Constant Voltage Charge, Constant Current and Constant Voltage Charge, Constant Power Charge | End Conditon | Voltage, Current, Relative Time, Capacity, -V | Discharge | Discharge Mode | Constant Current Discharge, Constant Power Discharge, Constant Resistance Discharge | End Condition | Voltage, Current, Relative Time, Capacity, -V | Pulse Test | Charge | Constant Current Charge, Constant Power Charge | Discharge | Constant Current Discharge, Constant Power Discharge | Minimum Pulse Width | 500ms | Pulse Number | 32 diffirent pulse for a single step | Charge And Discharge Switch | continuous switched for a single pulse step | End Condition | Voltage, Relative Time | DCIR Test | Supported | Cycle | Loop Measure Range | 1~65535 times | Max Steps Per Loop | 254 | Nested Loop | Nested loop Function, Max Support 3 Layers | Protection | Software Protection | # Power-down Data Protection | # Off-line Testing Function | # Setting Protection Condition, Setting Parameter: Low Voltage limit, Upper Voltage limit, Low Current limit, Upper Current limit, Delay Time | - - - - Primary Applications: # # Current & Voltage # Pulse Test # DCIR Testing(direct current internal resistance) # Capacity and Specific Capacity # Cycle Life # Formation & Grading # Over-charge, Over-discharge Features: # HPPC, Capacity, Cycle Life, Formation & Grading, Over-charge, Over-discharge # Market-proven Testing System # <=20ms Response Time to Meet Rapidly Changing Power Requirements # 0.1% Full-scale Accuracy for Current & Voltage # 10Hz Data Acquisition Frequency, 100Hz Optional # 500ms Minimum Pulse Width # More Than 1 Million Records Can Be Processed # 'And', 'or', '', '' and '=' supported; # Condition switches works with step accumulated time; # Up to 5 condition switches for each step; # Go to break supported.

How to choose a perfect match model? pls confirm the following items: # # Maximum charge discharge current; # Maximum charge discharge voltage; # Minimum discharging voltage; # If the temperature & voltage inside the single cells need to test? ( we can provide auxiliary channels) Battery Connections: Customers may care about the connection ways from Neware equipment to the battery module, we provide several clamps for you to choose.

Company Contact:

• Posted By: Neware Technology Limited company

• Phone: 86-755-83109966

• Address: 15/F, Tower 3, Excellence City, No.128, Zhongkang Rd., Shenzhen, CHINA 518049, Shenzhen , guangdong , China

• Email:

• Website: https://newarebattery-tester.sell.everychina.com

• Business Description: Introduced to the market in 2006, the most cost-competitive cell and battery test equipment, BTS3000 is now the most popular type in the battery testing field, and it serves for research institutes, universities and battery manufacturers all around the world.
