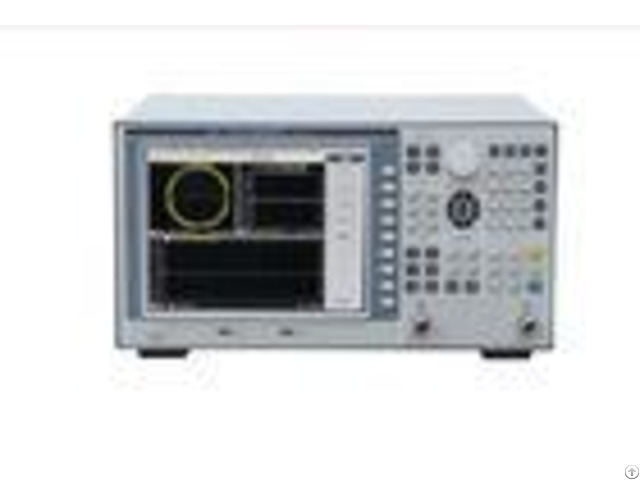

AV3656A Vector Network Analyzer 0.005dB trace noise renders network analyzer higher measuring accuracy Product Overview: AV3656A Vector Network Analyzer is a new generation produced by the 41st Institute of CETC based on many years of scientific research and production experience in vector network analyzer and has powerful measurement functions, which can complete vector network analysis in the field of wireless communications, cable TV, and automotive electronics, etc., and can be used for performance measurement of filter, amplifier, antenna, cable, and cable television sub connectors, etc.

radio frequency components.

Main Features: With a dynamic range of 120dB, for accurate measurement of strong suppression filter 10.4 inch true color high-resolution LCD with touch screen function Optional 75 test port impedance option for cable TV components measurement 0.005dB trace noise renders network analyzer higher measuring accuracy One-button operation greatly simplified the measurement setting steps with improved efficiency With up to 64 independent measuring channels that can implement complex testing schemes quickly With up to 32 display windows and each window displays up to 8 traced curves simultaneously Capable of completing time domain analysis With LAN, USB, GPIB and VGA display interface Technical Specifications:

Main technical indicators Main Indicators of AV3656A Vector Network Analyzer

Indicator test conditions: warm-up for more than 90 minutes, at ambient temperature: 23 3 - After calibration, the temperature change is less than 1.

Calibration kit: AV20205 N-type calibration kit.

Calibration cable: GORE OSZKUZKU0240 - - - -

Frequency range | 100kHz 3GHz | Frequency resolution | 1Hz | Frequency accuracy | 510-6 | Port output power | -40+10dBm | IF bandwidth | 1Hz100kHz | System dynamic range | IF bandwidth 10Hz | 95dB (0.110MHz) | 120dB (10MHz3GHz) | IF bandwidth 3kHz | 70dB (0.110MHz) | 90dB (10MHz3GHz) | Test port specifications | Frequency range | 100k10MHz | 10M3GHz | Effective directivity (dB) | 49 | 46 | Effective source matching (dB) | 44 | 40 | Active load matching (dB) | 49 | 46 | Reflection track | 0.020 dB | Transmission track | 0.020 dB | Display | 800600, 10.4 inch true color LCD | Interface | GPIB, USB interface, LAN interface, VGA display interface | Power supply | AC 220V10%, 50Hz5%; | Dimensions | 427mm223mm300mm | Weight | 18kg | Environmental adaptability | Comply with the requirements of clause 4.6.5.1in GJB3947-2009

Operating temperature range: 0 +40

Storage temperature range: -20 +70 | - - - -
