Waterproof Speed Dial Sip Call Box Metal Elevator Help Point Telephone - China

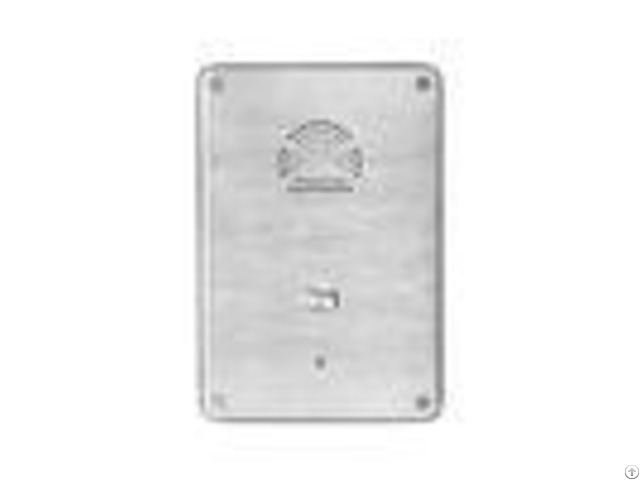

Vandal Resistant Hands-free Call Box for Metro, Metal Elevator Help Point The handsfree call boxis based on a stainless steel faceplate and provide a clear handsfree, loud-speaking operation for any public area.

It is designed to meet the needs of clients who experience loss through vandalism.

APPLICATIONS Ideal for Elevator, Lifts, Bus station, Parking lots, Doors, Metro, Subway, Tunnels, Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

MAIN FEATURES - Standard Analog Phone, VoIP/SIP Phone, GSM/3G Phone - Robust housing, constructed of stainless steel, back-cover made of cold rolled steel with powder coated - Vandal resistant metal button - Weather proof protection: IP55 to IP65 - Hands free operation - Programmable for speed-dialing (PPT) - On wall mounting, simple installation - 4 X Tamper proof screws for mounting - Phoneline powered (Analog) - External power supply or PoE (SIP) - RJ45 Port for SIP connection - CE, FCC, RoHS, ISO9001 compliant TECHNICAL PARAMETERS Voice Features - Support 2 lines SIP, SIP 2.0 (RFC3261) - Codec: G.

711A/u, G.

7231 high/low, G.

729, G.

722, G.

726 - Echo cancellation: Support G.

168 and hand-free can support 96ms - Supports full duplex.

- SIP support SIP domain, SIP authentication(none, basic, MD5), DNS name of server, peer to peer - SIP support 2 servers, user can through each server to calling in and out Network Features - WAN/LAN: support Bridge mode - Support PPPoE for xDSL - Support VLAN - Support Stun penetration - Support DHCP get IP on WAN port - - - - Analogue Version | Power Supply | From the analogue telephone network | Supply Voltage | 24 VDC to 65 VDC | Supply Current | 20 mA DC to 100 mA DC | Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) | Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.

23 - | - - - - - - - - Ambient conditions | Protection type | IP 66 as per EN60529 | Operating temperature | -40C to +70C | Storage temperature | -45C to +85C | - - - - PACKAGE Unit size: 210 *140 *50 (mm) Carton size: 340 *235 *165 ( mm ) Packaging materials: pearl cotton, carton Gross weight: 3 KG Net weight: 2 KG
