1000kn Ac Dc Hipot Test Equipment Withstand Voltage Digital Display - China

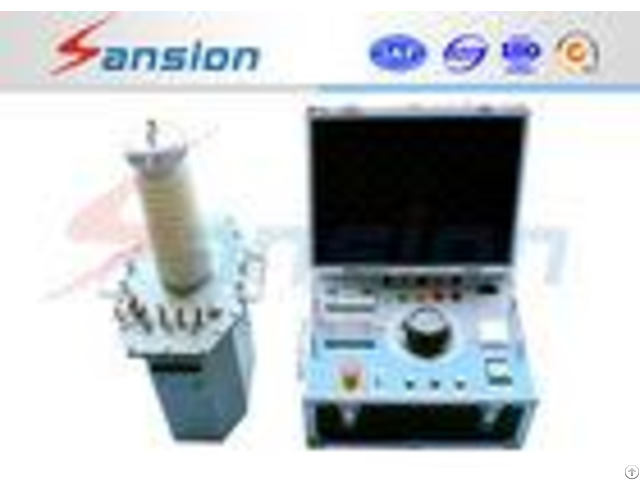

AC / DC Hipot Test Equipment High Voltage Withstand Hipot Tester General information SXTC-M Series AC/DC Hipot Test Set is suitable for hipot dielectric withstand test on various power electric products, units, insulating material and etc.

Features 1 - Oil, dry, SF6 gas type transformer is seletable according to user's requirements.

2 - High anti interference ability.

3 - High voltage (HV) voltage, Low voltage (LV) current, time, three channels testing ways.

4 - Real time monitoring HV voltage, LV current.

5 - Full protection functions: over-current, zero-starting sound light alarm, power switch protection.

6 - New type time rely, wider time range (1S ~ 99H).

7 - New type current rely, more precise, more reliable.

8 - 5kVA and above Testing Transformer with movable iron wheel.

Light weight, small size, easy to move, superior performance.

9 - The control tester can be designed to box type, table type, or cabinet type according to user's testing capacity: 5KVAor below, Box type 10KVAor above Table type 50KVAor above Cabinet type.

10 - Add rectifying installation to support AC/DC function .

(option) Specifications 1 - Input voltage: AC 110V220V 380V (customized) 2 - LV output: AC 0-250(430)V 3 - LV current: 0-5/10/15/50A (or customized) 4 - Output capacity: 0-3/5/10/15 kVA (or customized) 5 - HV output: 0-50/100/150/200 kV (or customized) 6 - HV current: 0-50/100/150/200/500/1000 /2000mA (or customized) 7 - Timing range: 0-9999S 8 - Working temperature: -20C to 50C 9 - Voltage precision: 1.0% 1 digit (F.

S) 10 - Current precision: 1.0% 1digit (F.

S) Main parameters of SXTC-M Control Unit (or at customized) - - - - Model | Input Voltage (V) | Capacity (KVA) | Rated Output | HV voltmeter KV/V | Oversize m3(LWH) | Voltage(v) | Current(A) | SXTC-M05 | 220 | 0.5 | 200 | 2.5 | 50/100 | 203020 | SXTC-M105 | 220 | 1.5 | 200 | 7.5 | 50/100 | 263624 | SXTC-M3 | 220 | 3 | 200 | 15 | 50/100 | 264224 | SXTC-M6 | 220 | 6 | 200 | 30 | 50/100 | 604537 | SXTC-M6 | 220 | 6 | 200 | 30 | 50/100 | 534060 | SXTC-M10 | 220 | 10 | 400 | 50 / 25 | (50/100)/100 | 534065 | SXTC-M15 | 380 | 15 | 400 | 37.5 | (50/100/150)/100 | 534070 | SXTC-M20 | 380 | 20 | 400 | 50 | (50/100/150)/100 | 534384 | SXTC-M25 | 380 | 25 | 400 | 62.5 | (50/100/150)/100 | 534590 | SXTC-M30 | 380 | 30 | 400 | 67.5 | (50/100/150)/100 | 6555115 | SXTC-M40 | 380 | 40 | 400 | 100 | (50/100/150)/100 | 7060115 | SXTC-M50 | 380 | 50 | 400 | 125 | (50/100/150)/100 | 7060115 | - - - -
