100kv Ac Hipot Test Equipment Dc High Voltage Tester Manual Control - China

price: check with company for price

100kv Ac Hipot Test Equipment Dc High Voltage Tester Manual Control

Products Photos Catalog 100kv Hipot Test Photos Catalog

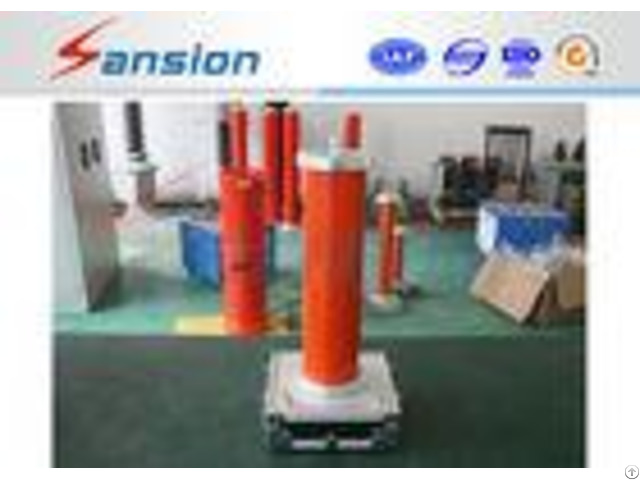

AC / DC Hipot Test Equipment Digital Divider ( with Peak Meter ) General information FRC Series Digital divider is mainly used to test on power frequency AC and DC high voltage.

It can instead of HV electrostatic voltmeter and suitable for power station, substation, HV equipment manufacturer, HV laboratory and etc voltage measurement divisions.

Key words: digital HV meter, HV meter, RC divider, electrostatic voltmeter, HV divider, AC/DC HV meter, AC/DC resistance capacitance divider.

We offer customize solutions as per your requirement.

Features 1 - Adapts 3 1/2 digital multimeter, which is designed as integration with the divider.

2 - On-site long distance read clearly, safety and convenience.

3 - High input impendence, good linearity can reduce the influence of HV power source.

4 - Divider can be unassembled into the suitcase, portable to carry.

Specifications - - - - Model | FRC-50 | FRC-100 | FRC-150 | FRC-200 | Measuring voltage range | AC 50KV DC 70KV | AC 100KV DC 140KV | AC 150KV DC 200KV | AC 200KV DC 250KV | Precision | 1.5 degree | Divider Impendence M | >600M | 900M | 1200M | 1500M | Working condition | Temperature 0 ~ 40C Humidity <85% | Overall (mm) | Divider | 60700 | 601000 | 601300 | 801600 | Case | 520350130 | 560360150 | 640380150 | 740470150 | Weight(kg) | 4 | 5 | 8 | 16 | - - - - Digital Peak Meter General functions 1 - Large screen LCD.

2 - TRMS/DC conversion module can exactly test true virtual value of various waveform voltage.

3 - Could test AC voltage peak value and DC voltage average value.

4 - Test range can convert automatically.

5 - Dividing coefficient can be extended within test range according the parameter of outside connected divider.

6 - Over voltage alarm function, the limitation value can be set within over voltage range.

Specification 1 - Test range: 0~9999.9kV(outside connected divider) 2 - Test frequency: 0~400Hz 3 - Test error: <1.0%+3(working temperature20C3C) 4 - Test error to show as: ([reading %]+[ LSB number(least significant bit)]) 5 - Display range: 0.1~9999.9 6 - Dividing ratio: 1~9999 7 - Max input voltage (unconnected divider): 600V(effective value) 8 - Input impendence: 10M 9 - Limitation voltage setting range: 1~999kV 10 - Working temperature: 0~40C(error 0.6 /C) 11 - Humidity: <90% 12 - Power voltage: 220V10% 50Hz 13 - Consumption power: <10W Warranty: One year quality guarantee after shipment.

More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation.

Thank you!


Company Contact:


  • Phone: 86-27-83385466

  • Address: Building 8, YuanYuanXin Industrial Park, DongXiHu District, Wuhan, China, Wuhan , Hubei , China

  • Email: Email


Published date: March 22, 2018

  • Business Description: From the date of order placing, we usually need 3-7 working days to manufacturing.

    Located in Wuhan City, the provincial capital of China, Sansion Power is easy to ship the package by the air or ocean.

    Sansion Power also can provide OEM service according your customized.
