400m 1300ft Hd Optical Transceiver User Selectable Output Format With Bnc Port - China
price: check with company for price

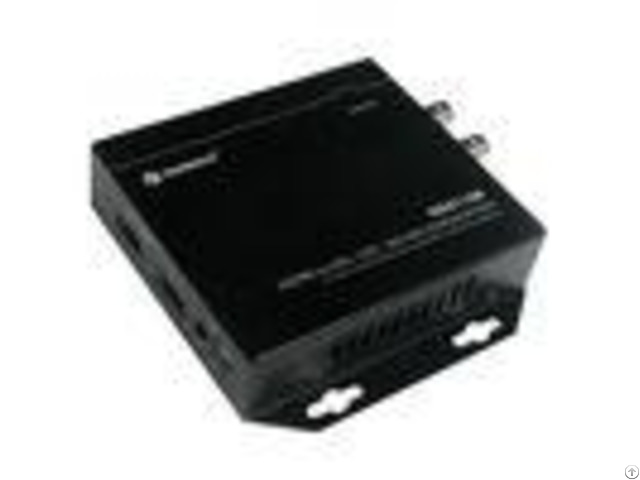

400m 1300ft HD Optical Transceiver User Selectable Output Format With BNC Port 1 - Overview Newbridge NB6110B HDMI to SD/HD/3G-SDI Converter is mainly used in converting one channel High Definition Multimedia Interface (HDMI) signal to serial Digital Interface (HD-SDI) signal .
The device integrates SDI transmitter and HDMI demodulator, and simultaneously separate and convert HDMI audio signal, then embed it to HD-SDI signal to achieve the sound and image synchronization transmission 2 - Features - - - - ND6110B | l Support series connection function in Transmitter and Receiver and easy to build a network system by installer.
l Switch easily between two HDMI sources by Remote control.
l HDMI signal convert SDI signal to achieve long distance transmission.
l Transmission distance can be up to 120 meters (400 feet Max) for 1080p using RG-6U Cable.
l Maintains highest HDMI single link video resolution 1080P@30Hz/60Hz.
l Support digital video formats in Deep Color Mode at up to 12bits/color.
l Support full HDMI audio and video.
l Normal mode and Turbo mode switch l Power supply and SDI signal format indicator | - - - - 3Application Diagram 4 - Dimensions 5 - Specifications - - - - Model | ND6110B | Input Interface | 2x HDMI | Frequency Bandwidth | 225MHz/ up to standard with HDCP : HDMI 1.3 | Support Input Format | 480i, 576i, 720p@50/60, 1080i@50/60, 1080p@24/25/30, 1080p50/60 | SDI Out Interface | 2x BNC(SD-SDI/HD-SDI/3G-SDI) | SDI Signal Range | 0.8V p-p | SDI Impedance | 75 ohms | SDI Coupling Type | AC Coupling | SDI signal jitter(typical value) | SD-SDI0.1 UI HD-SDI0.2UI 3G-SDI0.4 UI | Max.
Output Coax Length | Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ;3G-SDI 140m / 450ft | Power Supply | 12V DC, 1A w/ Locking Power Connector | Power Consumption | 3~6 Watts | Operating Temperature | -10C ~ 60C / 14F ~ 140F | Storage Temperature | -30C ~ 70C / -22F ~158F | Relative Humidity | 20~90% RH (Non-condensation) | Dimension | 112x 117x 25 mm / 4.40x 4.46 x 0.98 inches | Weight | 280g | - - - - 6 - Order Information - - - - Part No | Description of product | Unit | ND6110B | HDMI to SD/HD/3G-SDI Converter | pcs | - - - -
Company Contact:
- Phone: 86-755-85292891
- Address: Rooms 1318-20, 13/F, Hollywood Plaza, 610 Nathan Road, Kowloon, Hong Kong., Shenzhen , Guangdong , China
- Email:
Published date: March 20, 2018
- Business Description: Newbridge based on Shenzhen is certified by ISO9001: 2000, we have been founde in 2004 - We have three product lines, and the first line is SMT line (surface Mounting Technology).
there are three sets SMT high-speed device, two sets full automatic screen printer and one sets reflow Soldering in this line.
