Adapt Digital Display Ac Hipot Test Equipment Impulse Current Generator - China
price: check with company for price

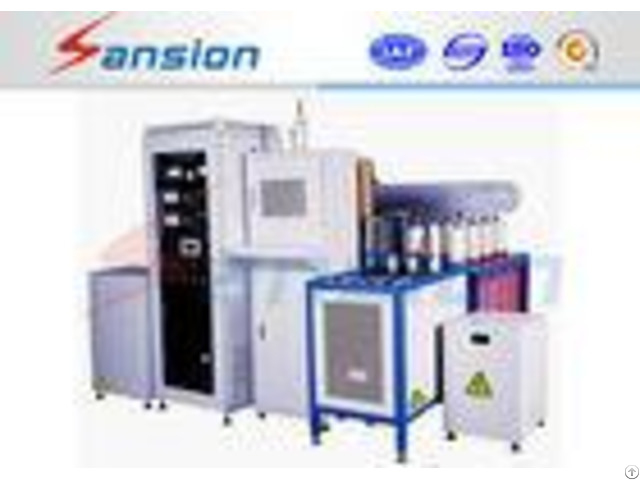

Withstand Voltage Impulse Current Generator AC Hipot Test Equipment General Information SXCL series impulse current generator mainly applied for various impact current testing on MOA resistor, varistor, discharge tube and others anti-lightning arrester protection products.
And it is used to inspect the voltage and current parameters under impulse current, and could be equipped and used to carry on duty testing of test object.
This instrument can generate standard impulse waveforms such as: 1/<20uS, 4<10uS, 8/20uS, 10/350uS, 18/40uS and 10/1000uS.
The waveform technical meet the requirement of national standards and IEC standards.
Features 1 - LCD touch screen.
2 - PLC control unit.
Easy to operate.
3 - Full functions including controlling, measuring, protection and functions could be developed.
Specification for reference - - - - Output Waveform | 4/10S | 8/20S | 10/350S | 10/1000S | 1000S | 2000S | Max.
KA | 100 | 5, 10, 20, 40 60, 80, 100 | 10, 20, 50, 100 | 0.5, 1, 2, 3 5, 10 | 0.2, 0.5, 1 | 0.5, 1, 2, 3 | Applicable Test Object | A | A V G | A V G | A V G | A V | A V | - - - - A.
Arrestor & Units V.
Voltage Surge Protector G.
Discharge Tube Note: The over shape and structure of impulse current generator is different according to its different waveform, max.
current, functions combination, test objects and etc.
It could be designed as table type (small size), cabinet type(middle size) or split system (large scale).
More details please contact Mrs.
Ying Ying by email for further information.
