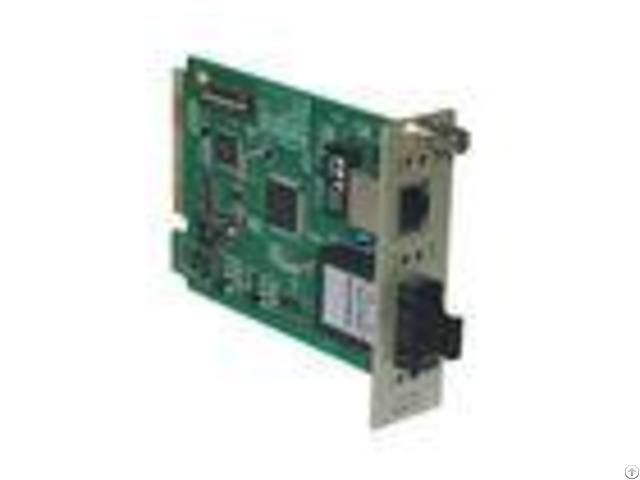

Anti Static 10m 100m Fiber Media Converter Single Mode 1550nm 0 20km Sc Port - China

10M/100Mbps Single mode 1550nm 0-20KM SC Fiber media converter, or fiber converter, media converter, or Ethernet fiber converter, is designed to extend the copper limit of 100 meters and gets Ethernet connected to 120km max on fiber optics Fiber media converter is a simple networking device that connects two dissimilar media types such as copper twisted pair and fiber optics Feature 1 - 100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversion 2 - Auto-MDI/MDIX copper RJ45 port 3 - 1600byte super data packet transmission 4 - Full duplex-flow control, half duplex-back pressure 5 - Link fault pass through (LFPT) 6 - Full- positioned LEDs to indicate power and network status Specification - - - - Standard | IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree | 10/10 0 BASE-T | STP or UTP Category 5/5e/6 cable (Max.

100m) | 100BASE-FX | 50/125umfiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um singlemode fiber cable (20/40/60/80/100km) | Conversion M ode / D elay T ime | Store-and-Forward < 10us, straight-through<0.9us | Flow control | Full duplex-flow control, Half duplex-back pressure | RJ-45 Port | Auto-MDI/MDIX | Fiber Connector | SC standard, ST/FC optional | Wavelength | 1310/1550nm | Power Consumption | <2.5W | MTBF | 50, 000 hours | BER | <1/1000000000 | MAC Address Table | 1K | Buffer Size | 1M | Operating Temperature | 0C~50C | Storage Temperature | -40C~70C | Storage Humidity | 5%~90% non-condescending | - - - - Connection Diagram order info - - - - Part No | Description of product | Unit | ND-820SK-20 | 10M/100M bps, Single mode, 1550nm, 0-20KM, SC | | - - - -
