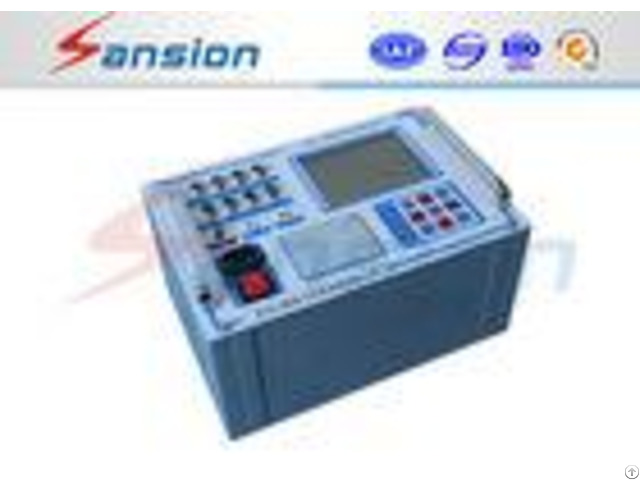

Auto Identify High Voltage Circuit Breaker Analyzer Sxgk F Convenient Connection - China

High Voltage Circuit Breaker Testing Equipment Switchgear Analyzer General information SXGK-F is designed to test the dynamic characteristics various voltage degree vacuum, SF6, with oil and etc high voltage and low voltage circuit breakers.

Features 1 - Auto identify open or close status.

To give correspondent close or open prompt according to channel's status.

2 - Can detect and prompt connection status of 6 channels (12 channels for option), it's convenient to detect connection.

3.100 groups data storage.

4 - Large LCD, can read clearly even in direct sunlight.

5 - Friendly English interface, easy to operate.

6 - Graphical analysis function, to realize waveform and measuring processed data to displayed at same screen.

7 - Delay protection, auto switch off coil voltage after breaker acting, to protect breaker and HV tester.

8 - Open-closed test by auto or manual is selectable.

9 - High/low voltage test is all available.

Specifications - - - - Time test: | 6 channels (12 channels is for option) | Open(Close)time | Open(Close)one phase no- synchronism | Open(Close)phase to phase no-synchronism | Close(Open)bounce time(bounce numbers) | Test range: | 0.1ms~999.99ms | Accuracy: | 1%(1% read+2digits) | Velocity test: | Open(Close)velocity | Pointed periods of time(travel period or angle period)average speed | Open(Close)max.

velocity.

| Range: | 1mm Sensor: 0.01~25.00m/s | 0.1mm sensor: 0.001~2.50m/s | 0.5angle sensor: 1cycle/ 0.5 | Accuracy: | 1mm Sensor (1% reading+1digit) | 0.1mm sensor (2% reading +1digit) | 0.5angle sensor (1% reading+1digit) | Travel test: | Active contactor travel | Contactor travel (open distance) | Overshoot travel or bounce travel (amplitude) | Sensor: 50mm, Resolution: 0.1mm | Sensor: 300mm(option), Resolution: 1mm | 360line sensor: 360, resolution: 0.5, accuracy: 1% | Screen: | 320240LCD | Data Storage: | 100 groups | Printer: | Build-in thermal printer | AC source: | AC 220V 10%;50Hz 2% | DC source: | Output voltage: 30~245V continuous adjustment, output current: 15A(short time) | Control unit oversize: | 380280140mm | Working Conditions: | Temperature: -10C~+50C RH: 90% | - - - - More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation.

Thank you!
