Auto Manual 220v High Voltage Measurement Equipment Stable 5000amps - China

price: check with company for price

Auto Manual 220v High Voltage Measurement Equipment Stable 5000amps

Products Photos Catalog Auto Manual 220v Photos Catalog

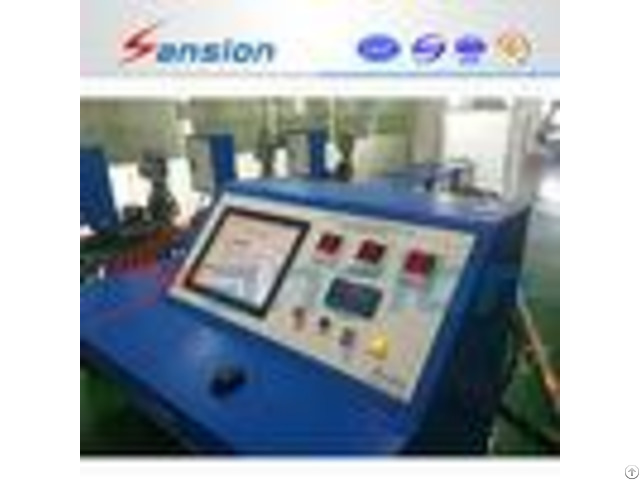

Auto / Manual 220V High Voltage Measurement Equipment Stable 5000AMPS General information: DDG Primary Current Injection Test Set is suitable for current load test and temperature rise test on various circuit breakers, switchgears, CT/PT and others electric equipments.

DDG Primary Current Injection Test Set is widely used in power division and industry mining enterprises.

Features: Could be designed to separate or compact structure according to the volume and weight.

Easy to move.

Output current no-polarity adjusts.

High stability of current rising.

Wide range of load changing.

Two current meters, can read measurement range easily.

Autotransformer is adjustable.

Reliable and easy to operate.

Specifications: Input voltage: 220V or 380V Output current: 200~10000A - - - - Model | Rated Capacity (KVA) | Rated Input | Rated Output | Impendence Voltage % | No-load Current % | Structure | Regulator | Current Injector | Current(A) | Voltage(V) | Current(KA) | Voltage(V) | DDG-1.5/500 | 1.5 | 1.5 | 6.8 | 220 | 0.5 | 3 | <8 | <6 | Compact | DDG-3/1000 | 3 | 3 | 13.60 | 220 | 0.5/1 | 6/3 | <8 | <6 | Compact/Separate | DDG-6/2000 | 6 | 6 | 27.00 | 220 | 1/2 | 6/3 | <8 | <6 | Separate | DDG-12/4000 | 12 | 12 | 37.50 | 400 | 2/4 | 6/3 | <8 | <6 | Separate | DDG-15/5000 | 15 | 15 | 37.50 | 400 | 2.5/5 | 6/3 | <8 | <6 | Separate | DDG-30/10000 | 30 | 30 | 75 | 400 | 5/10 | 6/3 | <8 | <6 | Separate | DDG-45/15000 | 45 | 45 | 112.5 | 400 | 7.5/15 | 6/3 | <8 | <6 | Separate | - - - - Note: "Rated output", left value is output in series, right value is in parallel For example"0.5/1": "0.5"is in series;"1"is in parallel.

Please contact with us for further information, our technically expereinced expertise team will select correctly designed test set for you.

Warranty: One year quality guarantee after shipment.


Company Contact:


  • Phone: 86-27-83385466

  • Address: Building 8, YuanYuanXin Industrial Park, DongXiHu District, Wuhan, China, Wuhan , Hubei , China

  • Email: Email


Published date: March 21, 2018

  • Business Description: From the date of order placing, we usually need 3-7 working days to manufacturing.

    Located in Wuhan City, the provincial capital of China, Sansion Power is easy to ship the package by the air or ocean.

    Sansion Power also can provide OEM service according your customized.
