Automatic Iec 156 Sf6 Gas Analyzer Transformer Oil Dielectric Strength Test - China

price: check with company for price

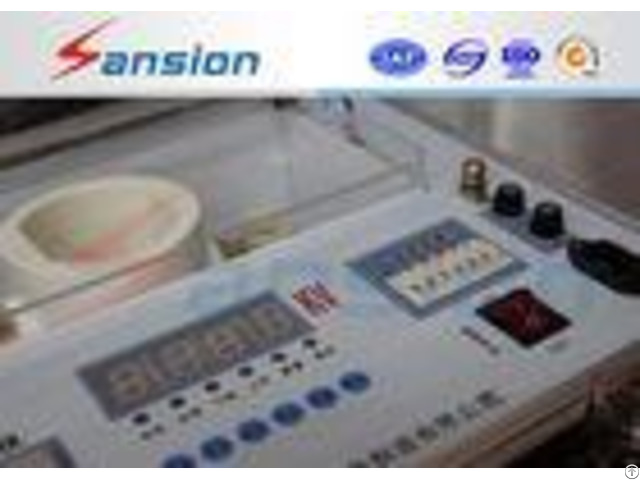

Automatic Iec 156 Sf6 Gas Analyzer Transformer Oil Dielectric Strength Test

Products Photos Catalog Iec 156 Sf6 Gas Photos Catalog

IEC 156 Transformer Oil Breakdown Meter General Information Keywords: Oil Dielectric Strength Tester Oil Breakdown Tester Transformer Oil Dielectric Strength Tester SXOT-II conforms to international standard IEC-156 and national standard GB507-86, can be used for power frequency dielectric break down test on the transformer oil, capacitor oil, electric device, insulation tool, electric manufacturer and etc.

It's widely used in the fields of power system, petroleum, chemical industry, railway station, power station, electric manufacturer and etc.

Features 1 - Self detecting function.

The regulator could return to zero start automatically.

2 - Controlled by micro computer, easy to operate.

3 - Build-in printer.

4 - Automatic magnetic bar stir, to eliminate uneven and bubble of oil.

5 - The user could select the test times, static stirring time, sound/light alarm continuously printing or stop printing.

The equipment to match the standard IEC 156, and the instrument is fully automatic type.

Specification 1 - Power supply: AC 200V-240V, 50HZ 5% 2 - Test voltage: : AC 0~100KVLimitation current: 5mA 3 - Test precision: 1% 4 - Voltage boosting rate: 2KV/s10% Presetting: 1-9 times 5 - Stirring time: 0-1 minute 9 seconds 6 - Static time: 0-10 minutes 39 seconds 7 - Environmental temperature: 0-35C 8 - Relative humidity: 75%RHPower: 300VA 9 - Electrodes Gap Size: 2.5mm 10 - Volume: 420320325mm 11 - Weight: 28KG Warranty: One year quality guarantee after shipment.

More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation.

Thank you!


Company Contact:


  • Phone: 86-27-83385466

  • Address: Building 8, YuanYuanXin Industrial Park, DongXiHu District, Wuhan, China, Wuhan , Hubei , China

  • Email: Email


Published date: March 22, 2018

  • Business Description: From the date of order placing, we usually need 3-7 working days to manufacturing.

    Located in Wuhan City, the provincial capital of China, Sansion Power is easy to ship the package by the air or ocean.

    Sansion Power also can provide OEM service according your customized.
