Dc 12v 1a Multimode Fiber Transceiver 3g 1080p 6 22 4 72 1 42 Inches - China

price: check with company for price

Dc 12v 1a Multimode Fiber Transceiver 3g 1080p 6 22 4 72 1 42 Inches

Products Photos Catalog 12v Multimode Fiber Photos Catalog

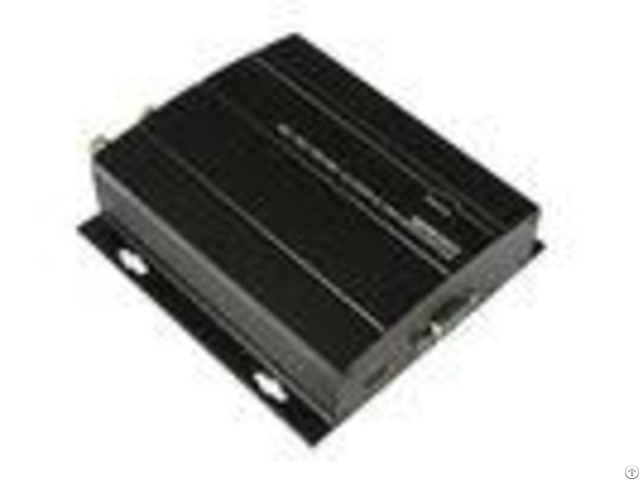

DC 12V 1A Multimode Fiber Transceiver 3G 1080P 6.22 * 4.72 * 1.42 Inches 1 - Overview Newbridge ND6810HA SD/HD/3G-SDI to HDMI & AV(CVBS) Converter converts single channel SDI signal to HDMI signal and CVBS signal.

It integrates SDI Cable equalizer and re-clocker to enhance video performance and stability.

Simultaneously, it also separates and converts the audio signal of SDI, embed it to HDMI signal or AV signal synchronously .

Then output analog audio DACs 2Features - - - - ND6810HA | l Support all type SDI resolution: SD-SDI: 480i, 576i HD-SDI: 720p24/25/30/50/59 .

94/60 all frame rate.

1080i all frame rate, 1035i all frame rate 1080p all frame rate 3G-SDI: 1080p all frame rate Support l SMPTE 425M, SMPTE424M, SMPTE292M, SMPTE259M-C.

l Carry 1 channel SDI signal loop out.

l Max.

cable length (Belden 1694A): SD-SDI 400m/1300ft, HD-SDI 200m/600ft, 3G-SDI l 140m/450ft l Automatically embed SDI audio signal to HDMI signal.

l User selectable output format (HDMI and CVBS) | - - - - 3Application Diagram 4 - Dimensions 5 - Specifications - - - - Model | ND6810HA | Input Interface | 1x BNC SDI | Input Signal Type | SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI (2.97Gbps) | Support Input Format | SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 3G: 1080p @ 50Hz / 59.94Hz / 60Hz | SDI Signal Range | 0.8V p-p | SDI Impedance | 75 ohms | SDI Coupling Type | AC Coupling | Max.

Input Coax Length | Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ; 3G-SDI 140m / 450ft | SDI Loop Out Interface | 1x BNC SDI | HDMI/DVI Output Interface | 1x HDMI 1.3 | Frequency Bandwidth | 165MHz/ up to standard with HDCP : HDMI 1.3 | AV (CVBS) Output Format | CVBS: PAL / NTSC | Power Supply | DC 12V, 1A | Power Consumption | 3~6 Watts | Operating Temperature | -10C ~ 60C / 14F ~ 140F | Storage Temperature | -30C ~ 70C / -22F ~158F | Relative Humidity | 20~90% RH (Non-condensation) | Dimension | 158 x 120x 36 mm / 6.22 x 4.72 x 1.42 inches | Weight | 300g | - - - - 6 - Order Information - - - - Part No | Description of product | Unit | ND6810HA | SD/HD/3G-SDI to HDMI & AV Converter | pcs | - - - -


Company Contact:


  • Phone: 86-755-85292891

  • Address: Rooms 1318-20, 13/F, Hollywood Plaza, 610 Nathan Road, Kowloon, Hong Kong., Shenzhen , Guangdong , China

  • Email: Email


Published date: March 21, 2018

  • Business Description: Newbridge based on Shenzhen is certified by ISO9001: 2000, we have been founde in 2004 - We have three product lines, and the first line is SMT line (surface Mounting Technology).

    there are three sets SMT high-speed device, two sets full automatic screen printer and one sets reflow Soldering in this line.
