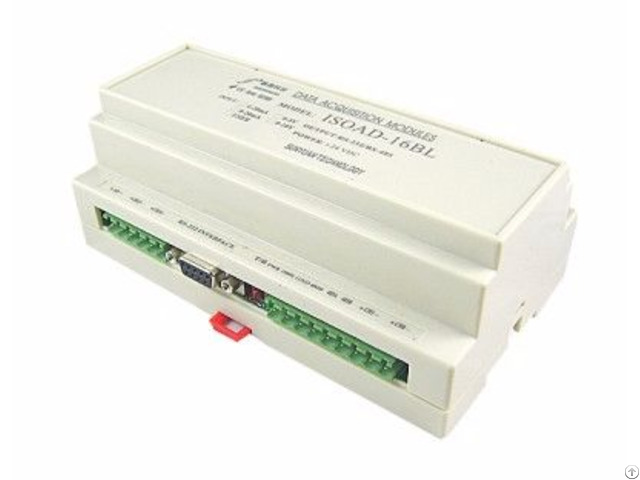

Dc Current Voltage To Rs485 232 A D Converter Support Modbus Rtu Syad - China

Analog data acquisition isolated AD conversion amplifier module.

Shunyuan technology patented products

Product Description

2-Channel/4-channel DC Current/Voltage Signal to RS232/RS485 A/D Converter without LED Display Model selection： SY AD 02(4)A -U(A)□ 02(4): Input Channel 02：2 Channel 04：4 Channel U(A)□: Input Voltage or Current Signal

U1：0-5V A1：0-1mA

U2：0-10V A2：0-10mA

U3：0-75mV A3：0-20mA U4：0-2.5V A4：4-20mA U5：0-±5V A5：0-±1mA U6：0-±10V A6：0-±10mA U7：0-±100mV A7：0-±20mA

U8：Customized A8：Customized Note：Support both RS232 and RS485 interface, support MUDBUS RTU.

Model Selection Examples: .

1： SYAD02A A4 Means 2channel, 4-20ma signal input, output is RS485 or RS232 interface

2： SYAD02A A7 Means 2channel, 0-5V signal input, output is RS485 or RS232 interface

3： SYAD04A U1 Means 4channel, 0-±5V signal input, output is RS485 or RS232 interface SYAD02/04A A-D Converter General Parameters：

(typical @ +25℃, Vs is 24VDC)

Input： Voltage / Current

Accuracy： 0.05%

Input maladjustment： ±0.1 uA/℃

Temperature Drift： ±15 ppm/℃ (±30 ppm/℃, max)

Input load： 50Ω (4-20mA/0-20mA/0-±20mA current input) 100Ω (0-10mA/0-±10mA current input) 1KΩ (0-1mA/0-±1mA current input) >1MΩ(voltage input) Band width： -3 dB 10 Hz

Switching rate：10 Sps

Common mode restraint(CMR)： 120 dB(1kΩ Source Imbalance @ 50/60 Hz)

Normal mode restraint(NMR)： 60 dB (1kΩ Source Imbalance @ 50/60 Hz)

Input terminal protection： over-voltage/over current protection

Communications： protocol RS-485 or RS-232 ASCII character communication protocol and MODBUS RTU communication protocol Baud rate(300, 600, 1200, 2400, 4800, 9600, 19200, 38400bps)software selectable

address(00H~FFH)softwa re selectable

Response Time：100 ms max

Operation Power Supply： +8 ~ 50 VDC wide power supply range, internal anti-reverse & over-voltage protection watt consumption： < 1W

Operation Temperature： - 45 ~ +80℃ Operation Humidity： 10 ~ 90% (non-condensing)

Storage Temperature： - 55 ~ +85℃ Storage Humidity： 10 ~ 95% (non-condensing) Isolation withstand voltage： between input and output： 3KVDC, 1 minute, leakage current 1mA Output and power are common-ground.

Endure Impact Voltage： 3KVAC, 1.2/50us(peak value)

Dimensions： 123 mm x 70 mm x 30mm

Weight： approximately 72g
