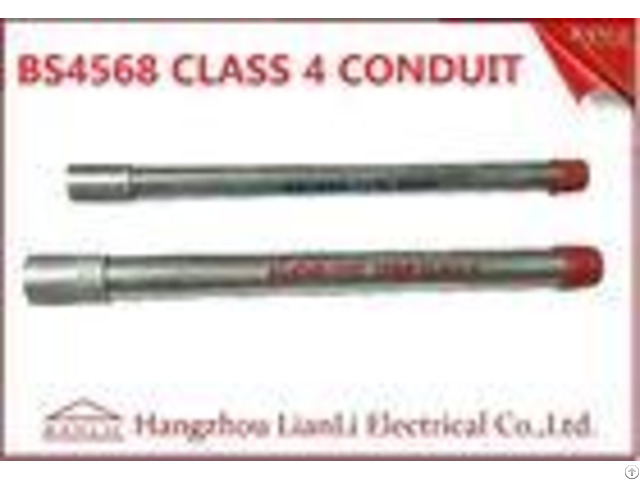

Electrical Bs4568 Gi Conduit Pipe 4 With Maximum Size Up To 150mm - China

GI Electrical BS4568 Conduit Class 3 and Classs 4 With Maximum Size Up to 150mm General: Steel BS4568 G.I. conduit is manufactured from a mild steel tube, It has an accurate circular cross section, a uniformand wall thickness, a defect free interior surface.

The finished threads, BS4568, conforms to the BS4568 Part 1: 1970 BS EN BS EN 50086-1: 1994 & BS EN 61386, Each length of the conduit have the size, logo, product name print or engraved to make as installation instructions Application: Ranlic BS4568 conduit can be installed indoors or outdoors, in dry or wet locations, exposed or concealed, in all kinds of atmospheric conditions if use the standared thickness, the galvanized thickness exceeding 70 micro meter.

it provides excellent mechanical protection for the conductors while reducing Electro-Magnetic Field exposure and shielding.

Features: Q195 steel coil for mechanical strength, well controled internal beads(all can remove as seamless) essential for wire pulling and resistant to snagging The conduits are come with a coupler screwed on one end and a protective plastic cap at the other ends to prevent damage.

Rigorous quality control procedures to ensure process and product consistency # Galvanized steel construction provides shielding from magnetic fields and protection from impact damage and crushing # Electroplated couplings prevent zinc build-up # Designed for use with threaded connections # Brand Name: RANLIC # Length : 3.75 meters.

# Material : Galvanized steel-class 3 / Hot-dipped Galvanized-class 4 # Size: 3/4, 1", 1-1/4 # Thickness: 1.3mm---1.6mm or according to customer's requirement Characteriestic & Diamention: - - - -

NORMAL | ITEM No.

| OUTSIDE DIAMETER | NORMAL | THIN WALL | LENGTH W/O | SMALL | BIG | SIZE | MIN | MAX | THICKNESS | THICKNESS | COUPLING | PKG (LGTHS) | PKG (LGTHS) | 20mm | RL15-20-3 | 19.7mm | 20.0mm | 1.60.15mm | 1.30mm | 3.75 meters | 10 | 100 | 25mm | RL15-25-3 | 24.6mm | 25.0mm | 1.60.15mm | 1.30mm | 3.75 meters | 10 | 100 | 32mm | RL15-32-3 | 31.6mm | 32.0mm | 1.60.15mm | 1.45mm | 3.75 meters | 10 | 50 | 38mm | RL15-38-3 | 37.6mm | 38.0mm | 1.80.15mm | 1.60mm | 3.75 meters | 5 | 30 | 50mm | RL15-50-3 | 49.6mm | 50.0mm | 1.80.15mm | 1.60mm | 3.75 meters | 5 | 30 | 63mm | RL15-63-3 | 62.5mm | 63.0mm | 2.10.15mm | 1.80mm | 3.75 meters | 1 | 10 | 70mm | RL15-70-3 | 74.5mm | 74.0mm | 2.10.15mm | 1.80mm | 3.75 meters | 1 | 10 | - - - - Why Choose Ranlic Conduit Item: 1) High quality material ensures a finish conduit and fittings with superior properties 2) Manufactured by perfect molds and professtional engineer 3) Fitted perfectly with fittings(conduits) for the CNC threading machine 4) 10 years export experience to make sure the perfect shipment date and package 5) Always like to listening customers feedback for the conduit arrived to customer's warehouse to improving our service Our Package:

Company Contact:

• Posted By: Hangzhou lianli electrical company

• Phone: 86-571-82834073

• Address: Linyi Village,Linpu Town,Xiaoshan District, Hangzhou , Zhejiang , China

• Email:

• Website: https://www.conduitsfittings.com

• Business Description: Hangzhou LianLi Electrical Co., Ltd.

  A UL & CUL LISTED COMPANY

  　 Background & Purpose:

  　 LianLi(Trade Mark: RanLic) Electrical being in electrical conduit industry more than five years, from 2006-2010, we were mostly doing the trade before , after 2010, we incooperated our factory start to produce the general conduit products for our customers, .

  right now our manufacturing products cover 80% of conduit products, at the start of our conduit biz, we are keening on the quality, LianLi does more than give people quality, service to enjoy.

  The company is actively involved in providing quality project solution, new conduit products development and general conduit products improvement.

  Our biz expand fastly, but we know it is not enough just for sales volume, we know we have responsibility to keep same service to our old customer and keep moving to cooperate with our potential customers, no matter new or old customers we will keep same quality products and same service.

  Products:

  EMT CONDUIT, IMC CONDUIT, RIGID CONDUIT, BS4568 CONDUIT, BS31 CONDUIT, STEEL ACCESSORIES FOR CONDUIT, ALU.

  DIE CASTING CONDUIT FITTINGS, ZINC DIE CASTING CONDUIT FITTINGS, BRASS ACCESSORIES, FLEXIBLE CONDUIT, ETC.
