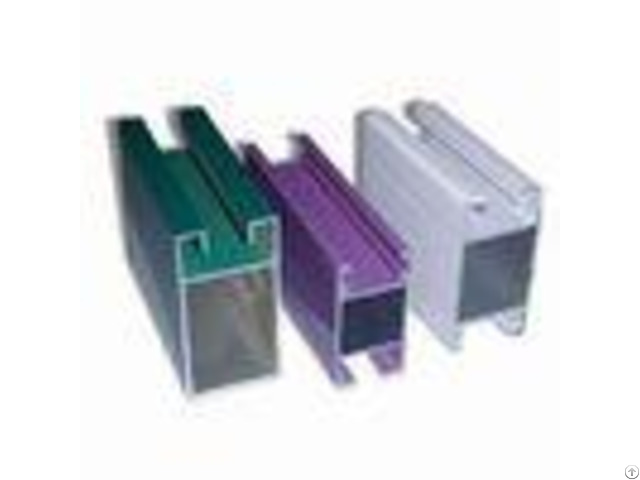

Electrophoretic Coated 6061 Aluminum Profile Q 320281 Pdwd 2008 Structural Aluminium Profiles - China

Electrophoretic Coated 6061 Aluminum Profile, Q/320281/PDWD-2008 Structural Aluminium Profiles Standard: GB/75237-2004, Q/320281/PDWD-2008 Certification: ISO9001 OEM service offered Material: Alloy 6063, 6061 or according to customer s choice Temper: T4, T5, T6, T66 Description: The surface treatment : 1) Mill Finished 2) Anodized : Silver, champagne, light bronze, dark bronze, black, light titanium, dark titanium .

Usually the thickness of the film is 10 um .

3) Electrophoretic coated : Silver, champagne, bronze, black, light bronze, dark bronze .

4) Powder spray coated : Normal color, special color .

Thickness : 60 to 80 um .

5) Fluorocarbon powder spray coated /PVDF Paint : Normal color, special color .

6) Drawbench 7) Steel polished 8) Wood grain coated /Wooden transfer : Imported paper, domestic paper .

Technical requirements 1) Standard: GB/75237-2004, Q/320281/PDWD-2008 2) Certification: ISO9001 3) OEM service offered 4) Material: Alloy 6063, 6061 or according to customer s choice Temper: T4, T5, T6, T66 5) Fabricationa: 1 - Milling; 2 - Drilling; 3 - Bending; 4 - Cutting.

6) MOQ : 1 ton.

Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

7) FOB Port: Shanghai Port Applications: Sliding aluminum doors, also called aluminum sliding door, are widely used as sliding closet doors, sliding cabinet doors, sliding bathroom doors, exterior sliding doors and sliding aluminum folding doors, and so on.

They have beautiful appearance and smooth surface, and are wind proofing, water proofing, and anti-erosion.

Specifications: 1 - Primary Technical Data 1)Chemical composition - - - - Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al | 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest | 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest | 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest | 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest | - - - - 2)Mechanical property - - - - Alloy | Temper | Tensile strength | Yield strength | Elongation | 6063 | T5 | 160Mpa | 110Mpa | 8% | T6 | 205Mpa | 180Mpa | 8% | 6061 | T6 | 265Mpa | 245Mpa | 8% | - - - - 2 - Specifications : Competitive Advantage: 1)Engineering design and support.

2)Aluminium profiles deeply processing: cutting, punching, drilling, milling, and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.

1 - Alloy : 6063, 6061, 6005 or according to customer s choice 2 - Material: Aluminum 3 - Suface Treatment: Mill Finished, Anodized, Electrophoretic coated, Powder spray coated, Fluorocarbon powder spray coated /PVDF Paint, Drawbench, Steel polished, Wood grain coated /Wooden transfer .

4 - Deep process: Milling, Drilling, Bending, Cutting.

5 - Application: Used in casement doors and windows for living room, dinner room, bathroom, office room, meeting room, restaurant, hotel, etc.

6 - Color: clear, satin, bronze, black, golden, silver, other multicolor 7 - Temper: T4, T5, T6, T66
