Galvanized Steel Trapezoidal Roofing Roll Forming Machine With Hydraulic Decoiler - China

Galvanized Steel Trapezoidal Roofing Roll Forming Machine With Hydraulic Decoiler HangzhouBluesteelMachineC O., LTDspecializedinmanufactu ringandexporting: 1)wall&roofformingmac hine 2)steptile.

Ridgecaprollfo rmingmachine 3)EPS/PUsandwichpanelline 4)C&Zpurlinmachine 5)metaldeckingformingmach ine 6)shutterdoorrollformingm achine 7)rainspoutformingmachine 8)slittingline 9)cuttolengthline 10)guardrailrollformingma chine General Description This series high speed tile forming machine is a new-generation type with high speed and high-efficient, including decoiler system, sheet guiding system, roll forming system, pressing system, cut system, auto-stacker system, hydraulic system, controlling system etc.

We can customize machine according to your requirements.

Technicalparameter - - - - Suitable material | color steel sheet;0.3-07mm, | Working speed | about10-25m/min | stress | 235MPa, 345MPa, 550MPa.

| Power | Main motor power: 5.5 Kw(Depend on final design) | Hydraulic station power: 4Kw(Depend on final design) | Material of forming rollers | No.

45 steel, plated with chrome on surface.

| Material of cutter, pressing die | Cr12 mould steel with quench treatment, HRC58-60 | Material of shaft | High quality 45# steel, Roller grinder milling.

| Shaft diameter | 72mm | Controlling system | Mitsubishi PLC & converter | Total weight of machine | About 9500KGS | Machines size | about 18m1.8m 1.5m (Depend on final design) | - - - - Working Flow of machine Decoilingguiding and feeding roll formingpressingcut to lengthrun out table Application This roof panel used as the roofing of factory, warehouse.

It is easy to realize the reliable and safety installation.

Good toughness: with super toughness, There is no necessary to do any treatment among the nail hole, it is sealing and can prevent leaking water.

Long life: life 25 years, is an alternative to steel sheet Corrosion resistance: strong acid, alkali, salt, anti-static, anti-vapor corrosion, etc.

Noise performance: noise performance is good, away from the noise.

The appearance of the shape: color and length can be arbitrarily chosen.

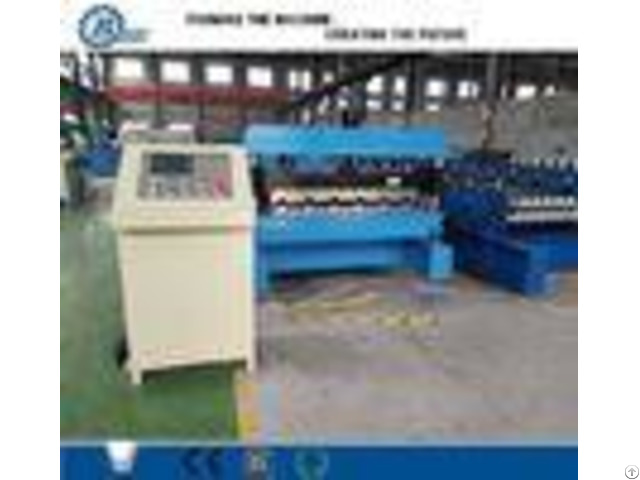

Machine Picture: 5T Hydralic Decoiler Showroom
