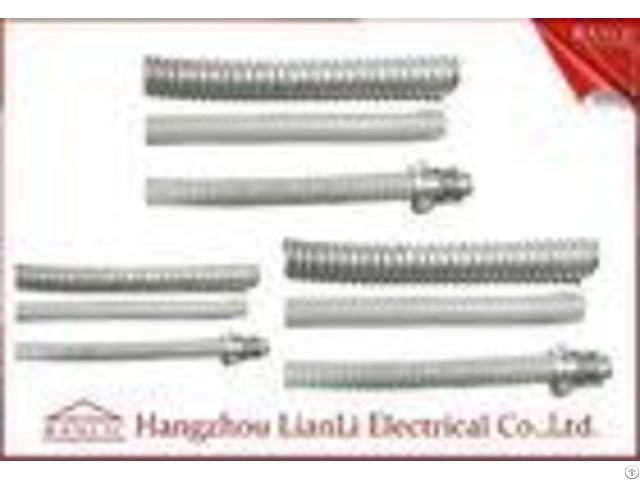

Heavy Duty High Temp Flexible Electrical Conduit Pvc Coated With 1 2 Inch To 4 Inch Size - China

PVC Coated High Temp.

Flexible Conduit Heavy Duty With 1/2" to 4" Size General: For protectiong the electrical wire, all the steel coil thickness exceeding 3.5mm to assure 170 ponds pressure, avoid the heavy item press flexible conduit abnormally.

galvanized thickness eceeding 30 micrometer anti rust The PVC part anti fire grade is IP6 Features: 1) Hot-dip/electro-gal.

steel coil material work temp-25 to 350 degree 2)All package meters available 15meter, 25meter, 30meter and 100feet.

3)For general wiring installation provides for good flexible bending & vibration Size & details: - - - -

INSIDE DIA.

| OUTSIDE DIA.

| ITEM | PITCH | GAL.

COIL | MIN.

BEND | STANDARD | IN.

| MM | MM | CODE | MM | THICKNESS | RADIUS | PACKAGE METERS | 3/8" | 12mm | 16.30mm | RL-F60 | 4.70mm | 0.20mm | 50 Degree | 100 Meters | 1/2" | 15mm | 19.70mm | RL-F61 | 5.70mm | 0.20mm | 65 Degree | 50 Meters | 3/4" | 20mm | 25.10mm | RL-F62 | 6.40mm | 0.22mm | 75 Degree | 30 Meters | 1" | 25mm | 31.00mm | RL-F63 | 8.70mm | 0.22mm | 100 Degree | 30 Meters | 1-1/4" | 32mm | 40.30mm | RL-F64 | 10.50mm | 0.30mm | 125 Degree | 15 Meters | 1-1/2" | 38mm | 45.80mm | RL-F65 | 11.40mm | 0.31mm | 150 Degree | 15 Meters | 2" | 50mm | 57.10mm | RL-F66 | 11.40mm | 0.35mm | 175 Degree | 10 Meters | 2-1/2" | 63mm | 70.80mm | RL-F67 | 14.20mm | 0.45mm | 200 Degree | 10 Meters | 3" | 75mm | 85.90mm | RL-F68 | 14.20mm | 0.50mm | 225 Degree | 5 Meters | 3-1/2" | 83mm | 95.55mm | RL-F69 | 14.20mm | 0.60mm | 230 Degree | 5 Meters | 4" | 100mm | 108.50mm | RL-F70 | 14.20mm | 0.60mm | 275 Degree | 5 Meters | - - - - Why Choose Ranlic Flexible Conduit We are sending samples free of charges When start buying our products, if destination markets growing fastly ranlic will pay advertisment in customer's market to help our customer publishing our brand.

Quick shipment and fine package help you have good condition when containers arrived.
