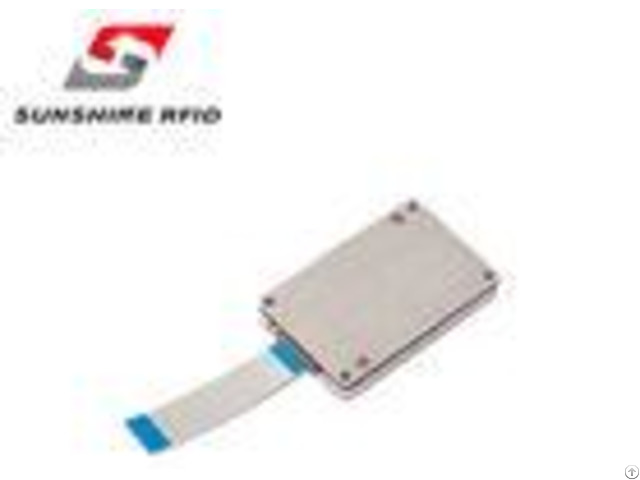

High Precision Impinj R2000 Uhf Rfid Reader Long Range Oem Odm Available - China

impinj R2000 long range rfid reader module available for embedded in handheld terminal Product Advantages: # Employed IMPINJ R2000 RF Chips, up to 110dbm receiving sensitivity and the high performance makes this module more suitable for harsh application environment.

# High stability and reliability, 60*24 hours high temperature of workstation, can work stably and continuous.

# The smallest module volume (56.5*36.0*7.8 MM) in the same field and supply power of 3.7V--5V, it is especially suitable for handsets and other mobile devices.

# Enhance noise suppression for reliable data capture.

# High precision return signal strength (RSSI).

Product Electrical Parameters - - - - NO.

| Name | Parameters | 1 | Working Voltage | DC 3.75V | 2 | Working Current | 1.5A | 3 | Standby Current | 50mA | 4 | Sleep Current | 1mA | 5 | Working Temperature | -25+65 | 6 | Working Humidity | 95%(+25) | 7 | Storage Temperature | -40+80 | 8 | Tag Protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C | 9 | Working Frequency | 840960 MHz | 10 | Supporting Working Areas | China 1, China 2 US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Japan, Korea, Malaysia, Taiwan | 11 | RF IC | Impinj R2000 | 12 | Output Power | Software adjustable, step interval 1.0dB, maximum 30dBm | 13 | Output Power Flatness | 0.2dBm | 14 | Receiving Sensitivity | -82dBm | 15 | RF Port Standing Wave | 1.5 | 16 | Reading Distance | 10m(With 8dBi antenna/Relate to tags type, transmitted power and application environment) | 17 | Multi-tag Reading | 400 tags/s | 18 | Antenna Interface Amount | one(MMCX) | 19 | Interface Communication Rate | 115200bps | 20 | Working Temprature Detection | support | 21 | Intensive Read/Write Mode DRM | support | 22 | Antenna Connection Protection | support | 23 | RSSI | support | 24 | LED | Red light (power indicator ) | 25 | Product Cooling Way | Aluminum metal case as cooling fin for the module | 26 | Dimension | 56.5*36.0*7.8 MM | - - - - Interface Definition - - - - Pin NO.

| Name | Type | Description | 1 | UART_TX | I/O | TTL UART Transmit | 2 | UART_RX | I/O | TTL UART Receive | 3 | GPIO3 | I/O | Output | 4 | GPIO2 | I/O | Output | 5 | GPIO1 | I/O | Output | 6 | PWREN_MODULE | I/O | When Pull Down This Pin to Ground, The Module Enter Sleeping Mode.

| 7 | GND | Ground | Ground | 8 | 9 | VCC | Power | DC 3.7V to 5V Power Input.

| 10 | - - - -
