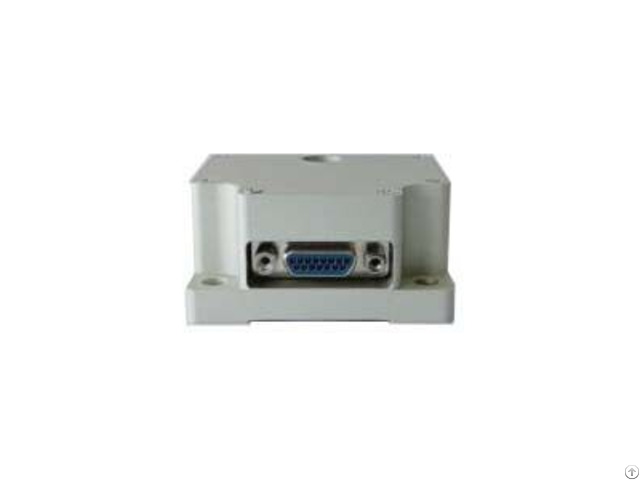

High Precision Navigation Mems Imu - China
price: 999.00 Dollar US$
ER-MIMU-06 (0.05º/h) Features:
1 - Measuring range ±400º/s;
2 - Bias instability (Allan variance) 0.05º/h;
3 - Light Weight.
ER-MIMU-06 uses MEMS accelerometer and gyroscope with high quality and reliability, RS422 and external communication, baud rate can be flexibly set between 9600~921600, through the communication protocol to set the user’s required communication baud rate.
With X, Y, Z three-axis precision gyro, X, Y, Z three-axis accelerometer with high resolution, can be output by RS422 X, Y, Z three axis of gyroscope and accelerometer’s original hexadecimal complement data (including gyro hexadecimal complement the numerical temperature, Angle, the accelerometer hexadecimal temperature, the acceleration hexadecimal complement number); It can also output float dimensionless values of the gyroscope and accelerometer processed by the underlying calculation.
Application areas
Antenna and Line of Sight Stabilization Systems
Integrated Navigation Systems & Inertial Guidance System
Flight Control & Guidance System
Attitude Heading Reference Systems (AHRS)
Stabilization of Antennas, Cameras & Platforms
Aerial and Marine Geo-mapping / Surveying
Company Contact:
- Posted By: ericcoinertialsystem
- Phone: 17391988506
- Address: 高新, 瑞鑫大厦, xi'an , Shaanxi , China
- Email:
Published date: November 15, 2023
- Business Description: Ericco, established in 2006, is a group corporation in China and specializes in R & D and manufacture of all kinds of inertial sensors and inertial positioning / orientating / navigation / attitude measuring systems, such as MEMS gyroscope, FOG gyroscope, Liquid Floating Gyroscope, Quartz Accelerometer, MEMS Accelerometer, North Finder, IMU, INS, AHRS, etc., which are widely applied in many different industries including Aviation / Aerospace / Weapon / Ship / Electronics / Petroleum / Gas / Mining and so on.
After fifteen years of development, Ericco has successfully served clients from more than 50 countries, and provided clients with excellent standard products and customized solutions for the applications of North seeking, Positioning and Orientating, Navigation, Attitude Measuring & Control, Oil & Gas downhole exploitation.
