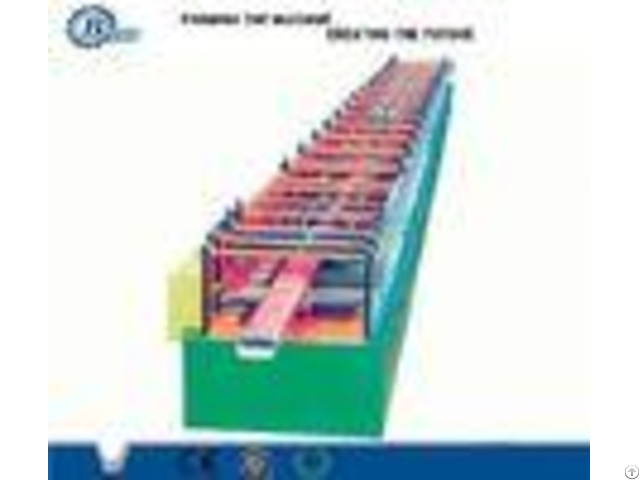

Hydraulic Station Power 4kw Downpipe Roll Forming Machine 550mpa 345mpa 235mpa - China

Round Downpipe Forming Machine, Rainwater Steel Downpipe Roll Forming Machine Technical data ofdownpiperoll forming machine - - - - Suitable material | color steel sheet;0.3-07mm, | Working speed | about10-25m/min | stress | 235MPa, 345MPa, 550MPa.

| Power | Main motor power: 5.5 Kw(Depend on final design) | Hydraulic station power: 4Kw(Depend on final design) | Material of forming rollers | No.

45 steel, plated with chrome on surface.

| Material of cutter, pressing die | Cr12 mould steel with quench treatment, HRC58-60 | Material of shaft | High quality 45# steel, Roller grinder milling.

| Shaft diameter | 72mm | Controlling system | Mitsubishi PLC & converter | Total weight of machine | About 9500KGS | Machines size | about 18m1.8m 1.5m (Depend on final design) | - - - - Layout drawing of machine producing process: Product: We can also customize the products according to customer ' srequirements OurRoll Forming Machines advantages 1 - Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .

to protect surface shiniing and strong 2 - Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.

and hardness 60 degree.

3 - Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4 - High precision: shafts for rollers are tooled by grinding machine.

Rollers are CNC processed to ensure precision performance.

5 .

automatic PLC: introduced Mitsubishi PLC with touch screen, inverter, transformer.

6 - powerful driving system: big inch train, or gear box driving system.

6 - Excellent services: Technician can be sent to your factory to install the machine and train your workers.

Lifttime services for our machines.
