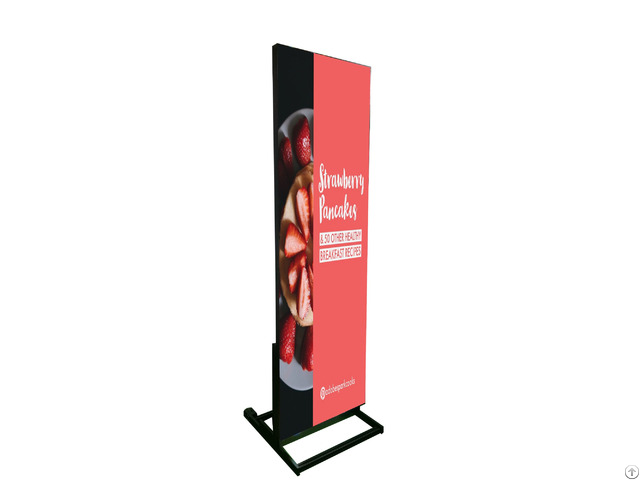

Indoor Digital Led Poster - China

Model Type PT3 S (standard) PT3 L (Linkable)

Pixel pitch 3 mm 3mm

LED Type SMD 2121 Mat Black SMD 2121 Mat Black

Pixel type(R / G / B) 1R1G1B 1R1G1B

Module Pixel 64 x 64 64*64

Module Resolution 4, 096 4, 096

resolution (HxW) 192×640 192*640

Module size 192 x 192mm 192*192mm

Viewing Distance ≥ 3 M ≥ 3 M

brightness ≥ 1, 000 cd/m² ≥ 1, 000 cd/m²

Ratio 8192: 1/16384: 1 8192: 1/16384: 1

Viewing Angle 120° (H)/120°(V) 120° (H)/120°(V) Weight 35kg 35kg

Frame Size 1930mm(H)X584mm(W)X45mm(T ) 1930mm(H)X584mm(W)X45mm(T )

Case Material Aluminum Aluminum

Grayscale 16 bits RGB 16 bits RGB

Video frame rate 60 Hz 60 Hz

Refresh rate > 1, 200 Hz > 1, 200 Hz

Drive mode 1/16 scan 1/16 scan

Input voltage AC90-240V AC90-240V

Maximum Power Consumption 600W 600W

Average Power Consumption 280W 280W

Life Span ≥ 100, 000 Hours ≥ 100, 000 Hours

MTBF ≥ 10, 000 Hours ≥ 10, 000 Hours

Application Indoor/ Semi-Outdoor Indoor/ Semi-Outdoor

Control method: Asynchronous(WIFI/USB/LAN ) Asynchronous(WIFI/USB/LAN /HDMI)

Temperature Operating (℃) -40°～+75° -40°～+75°

Working Humidity 10%–95%RH 10%–95%RH

Power Protection Over-current/Over-voltage protection Over-current/Over-voltage protection

Compliance CE/ETL/ UL CE/ETL/ UL

Joint screen qty(PCS) 1 2 to 10

Joint gap(mm) Less than 3mm Less than 3mm

Company Contact:

• Posted By: Shenzhen NSE Electronics Co.,Ltd

• Phone: 86 755 2823 7438

• Address: Bld 1, Yali Ind Park, TianBao Rd, ShiYan, BaoAn District, Shenzhen, China, Shenzhen , Guangdong , China

• Email:

• Website: https://www.nseled.com

• Business Description: To be known as a leading portable sign manufacturer, NSE has got rapid-growth in the market in the past 5 years.

  Being an ISO9001 Certified and Government-nominated "Hi-Tech Enterprise", we are continuously investing in the Research and Development of portable and other creative LED display products.

  Currently, we have few patents registered in China.

  Now our LED display products have been sold to more than 60 countries and areas, such as South Africa, Australia, USA, Germany, Spain, Poland, Russia, Australia, Chile, Brazil, Paraguay, Mexico, Thailand , Malaysia, Indonesia , Vietnam, Saudi Arabia, Iran, and so on.

  We were also supplied ODM business to two leading VMS products suppliers in Australia and Brazil.

  We believe that quality and customers' need can be achieved and satisfied only with high & whole-hearted dedication, and persistence in pursuing high performance of the products.

  With strict quality assurance system, we are receiving less than 0.01% compliant of noticeable defects from our products.

  So far, Our products had passed various certificates, such as CE, FCC, ETL, CCC , ROHS ec.

  "Create Value, Display Infinity", NSE will continue to focus on portable sign filed and break new ground on the basis of past achievements, to strive to top-class LED display supplier
