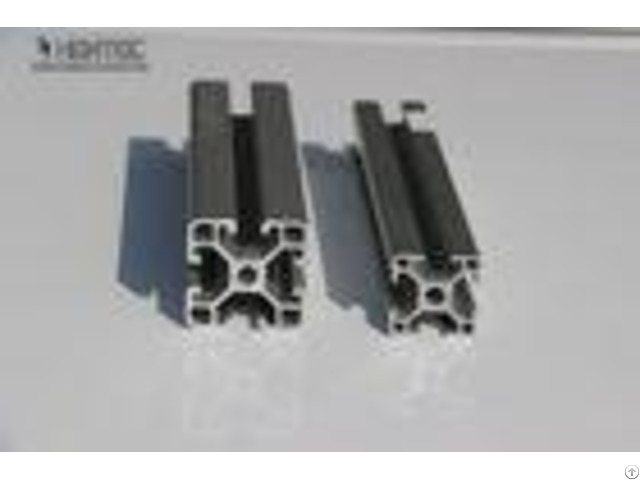

Industrial Aluminium Extruded Profiles Assembly Line Heat Sink Electrical Enclosure - China

High Quality Aluminium Extruded Profiles For Assembly Line, Heat Sink, Fand Blade Our advantage is that we have very strong design team, with innovation .

And we have the ability to give you the technical support ! We are supping the following aluminum products to SHARP, BOSCH, PANASONIC, AKCOME .

Description: - - - - Material | Alloy 6063, 6061 or according to customer s choice | Temper | T4, T5, T6, T66 | Surface | Anodize (clear, satin, bronze, black, golden, silver, other multicolor), electrophoresis, powder coating, PVDF coating, wood grain painting, etc.

| MOQ | 1 ton.

Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

| Machining | High-precision machining available upon request (lathe/milling/CNC machining/polishing/punch ing/drilling/taping, etc.

) | Moulding | We can design the mould as customer's request | Certificate | ISO14001: 2004, ISO9001: 2000 | FOB Port | Shanghai, etc.

| - - - - Applications: Industry Aluminum profile used in cars, trains machinery, electronics, medical and other industrial filed .

In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials.

We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.

Specifications: 1 - Primary Technical Data 1) Chemical composition - - - - Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al | 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest | 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest | 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest | 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest | - - - - 2) Mechanical property - - - - Alloy | Temper | Tensile strength | Yield strength | Elongation | 6063 | T5 | 160Mpa | 110Mpa | 8% | T6 | 205Mpa | 180Mpa | 8% | 6061 | T6 | 265Mpa | 245Mpa | 8% | - - - - Competitive Advantage: 1) Engineering design and support.

2) Aluminium profiles deeply processing: cutting, punching, drilling, milling, and fabricating.

3) High Quality system, strictly inspection during production and whole inspection before package.

4) Good performance, product warranty for 15 years.
