    • Industry Grade Ac Impulse Voltage Generator Dynamic Load Sxcf Sgs Certificated - China

    price: check with company for price

    Industry Grade Ac Impulse Voltage Generator Dynamic Load Sxcf Sgs Certificated

    Products Photos Catalog Grade Impulse Voltage Photos Catalog

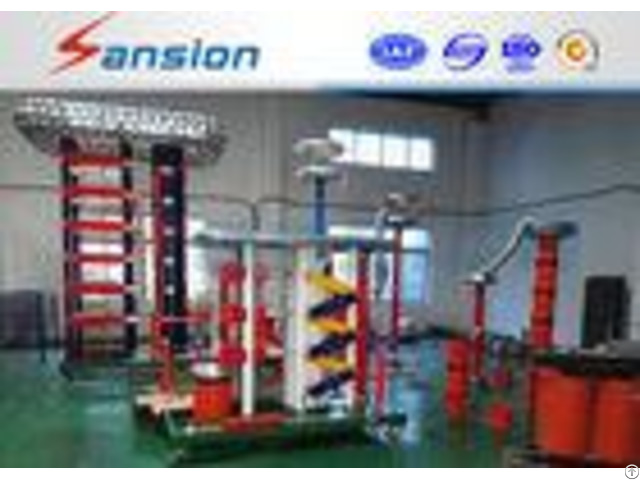

    AC Impulse Voltage Testing System Generator For Lightning Test General Information This impulse test system is used for carrying out standard lightning impulse voltage full wave and operation wave tests on HV apparatus such as power capacitors, clearance, bushings, power transformers and CT/PT at 10kV or below.

    Main Parameters for System Nominal voltage: 200kV Rated stage voltage: 100kV Rated energy: 10kJ Impulse capacitance: 0.5F Number of stages: 2 Rated stage capacitance: 1F(each impulse capacitor 1F at 100kV, total 2pcs) Impulse voltage waveform: generated when load capacitance is 300-3000pF.

    T1=1.2s30%, T2=50s20%, standard lightning impulse voltage full waveform of peak voltage deviation3%; Standard operation waveform 25020%/250060%.

    These 2 Impulse voltage waveform parameters and error are accorded with national requirements of GB311.1and GB16927.1 standard and IEC standard.

    Voltage utilization factor: Standard lightning impulse voltage waveform 90% when load capacitance is below 1000pF, standard operation impulse voltage waveform80% when load capacitance is below 2000pF.

    Standard operation impulse voltage waveform 70%.

    Locking range: level voltage is within the range of 20%-100% rated voltage, positive and negative locking range no less than 25%.

    Out-of-control rate of synchronous discharge: <5% Min.

    output voltage: 20% of rated voltage.

    Instability of discharge voltage: <1.0% Continuous time: Above 2/3 of rated voltage, continuous working when charge and discharge once every 120s.

    Below 2/3 of rated voltage, continuous working when charge and discharge once every 60s.

    Above information for reference using, please contact us for further technical details.

    Impulse Voltage Generator More details please contact Sansion Power by email for further information.


    Company Contact:


    • Phone: 86-27-83385466

    • Address: Building 8, YuanYuanXin Industrial Park, DongXiHu District, Wuhan, China, Wuhan , Hubei , China

    • Email: Email


    Published date: March 22, 2018

    • Business Description: From the date of order placing, we usually need 3-7 working days to manufacturing.

      Located in Wuhan City, the provincial capital of China, Sansion Power is easy to ship the package by the air or ocean.

      Sansion Power also can provide OEM service according your customized.
