Information Equipment F G 15 1 Inches Touch Screen Panels 2 Layers Odm Oem - China

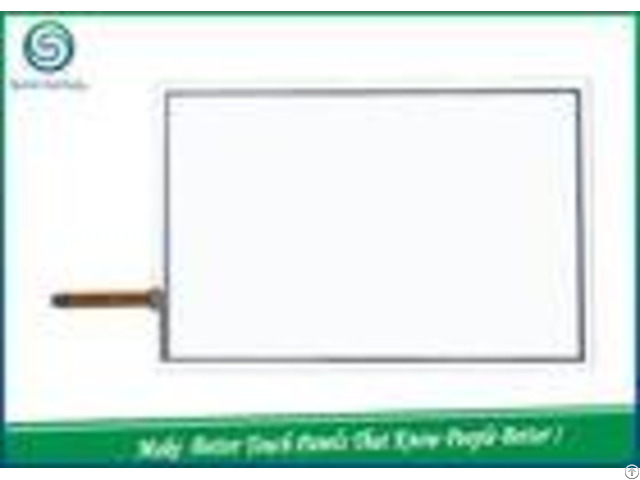

2 Layers F / G 15.1 Inches Touch Screen For ODM / OEM Industry Machine Medical Device Information Equipment Specifications: - - - -

Structure | P + F + G | Wiring Method | FPC | OD | 360.0*240.0*2.3mm | VA | 330*210mm | AA | 326*206mm | Transmittance | >73% | Touch Life Span | >3, 000, 000 times | Scoring Life Expectance | >1, 000, 000 times | Linearity | <1.5% | Supply Voltage | 3.3V DV, 5V DC | Chattering Time | <10 MS | Operating Temperature | -20-70, <90%RH | Storage Temperature | -30-85, <90%RH | Operating Force | 50-120g | Insulation Resistance | >20, 25V(DC) | Circuit Resistance | X: 520-880 Y: 200-500 | - - - - Front View Drawing: Description: 1 - Some Advantages a.

Competitive price; b.

High performace; c.

Widespread application; d.

Sensitive to touch; e.

Various choices of surface treatments available, anti-Newton, anti-glare, special chemical stengthen hard coating, anti-reflection; f.

Capable of handing spacer dots diameter is less than 0.035mm; g.

We have our own factories, so our price is competitive; h.

The excellent sales service.

Currently, we have been supplying touch panels to clients domestic and abroad.

Samsung and Nintendo are two well-known companies of them.

2 - PRC National Standard High Quality Manufacturer Audited by TUV, our factory complies with the national standard of high quality manufacturer through the following aspects: genuine manufacturer, dedicated export team, research and development capability, trustworthiness and reputation, high quality products, considerable company size, social and environmental responsibility, customer service capability.

In 2010, we passed ISO 9001: 2008 International Management System and ISO 14001: 2004 + Cor 1: 2009 Environmental Management System.

3 - High Stability of Staff Makes High Stability of Quality Over 60% workshop workers have been working in our company since 3 years ago and it is more than 80% of the management.

The philosophy of people-oriented management makes all staff like one.

Additionally, our sales team are able to offer 4 languages service, including Japanese, Korean, English and Chinese.

And we are always trying our best to support our clients.

- - - -

Raw Material | Supplier | ITO Film | CSG HOLDING | ITO Glass | CSG HOLDING or TOKEN | Cover Lens / Glass | AGC GROUP | Conductive Silver Paste | ASAHI or INKTECH | Printing Ink | SEIKO | OCA | 3M or LG | - - - - 6 - Detail Makes Difference Perfect details make our products perfect.

Silkscreen of our analogue resistive touch panels and projected capacitive touch panels has smooth surface, smooth line, uniform thickness and the linearity is below 1.5%; the edge is smooth with tolerance below 0.1mm; minimum width of silver line and distance between lines is 0.15mm.

Silk-printing, laminating, cutting, FPC bonding etc.

are all operated by automatic machines and skill-experienced workers.

Almost everything is under our control.

7 - 100% Inspection Every stage of production process is focused on a lot to avoid mistakes and regarding the cleanliness of appearance and function, we carry out 100% inspection.

What we care most is that each piece touch panel delivered from our warehouse has to meet our clients requirements.

8 - Safe Packaging and Delivery Up till now, every order of our touch panels has reached our clients abroad successfully without any damage.

We pack touch panels with blister tray or foam box as requested first, certainly, there is a piece of protective film on it; and second, put into a bag and make it vacuum; lastly, put into a carton box.

Applications: - - - -

Touch-Function Products | LCD Module | Consumer Devices | Mobile Phone, Tablet PC, PDA, MP3, MP4, PMP, Gaming, Web PAD, etc.

| Automotive, Medical, Industrial | Industrial Controls, Equipment Panels, Medical Device, GPS Navigation, Rearview Mirror Camera, etc.

| House-hold Electronics, Financial, Entertainment System, Office Equipment | POS, ATM, Self-Serve Kiosk, Access Control, Door Phone, Refrigerator, Microwave Oven, Copier, Fax, Disinfector, etc.

| - - - -
