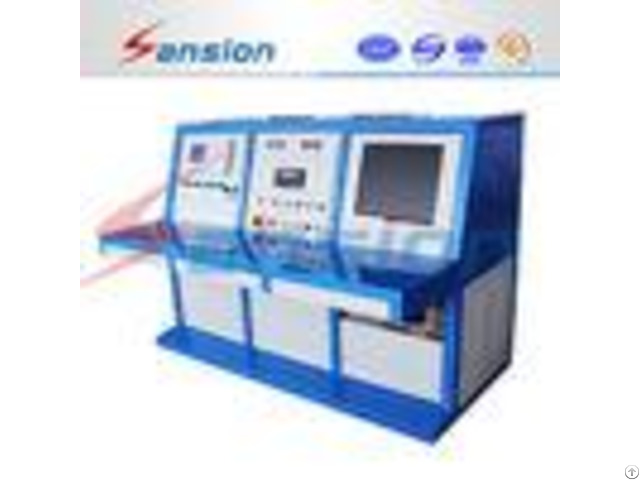

Integrated Ac 3 Phase Electric Motor Testing System 250kw Full Automatic - China

Full - Automatic Integrated AC Motor Testing System Test Bench I.

General Information.

This system is mainly applied for the routine testing, maintenance or ex-work testing on 250KW three phase motor.

The system is consisted by two parts: # Front power source With 250kW frequency inverter made by SIEMENS as frond system power source.

Used to test rotor voltage(open circuit voltage), Locked-rotor (short circuit), no-load test and etc.

# Measuring control.

System measuring control part adopts high-precision electrical parameters test unit to meet the precision electrical measurement requirements on various models/levels motors.

II.

System features: # To complete the 250KW / 380V motor no-load test, three-phase voltage unbalance test, DC resistance test, turn-to-turn voltage withstand test, insulation resistance and AC voltage withstand test.

# Measurement parameters display, measurement parameters menu display, parameter setting.

# All the test data can be displayed and printed out.

# High quality SCM processor, unique scientific algorithms for data computing and processing, analog-digital conversion using high-speed fast A/D converter, the analog signal conditioning also uses the current advanced processing technology, TO provide the necessary conditions for the high performance, high precision and high reliability of the system.

# The human-machine interface adopts the blue screen English character graphic display.

The multilevel menu can guide you complete the test step by step.

# Fully English interface, easy to operate.

Please contact Sansion Power for further informaiton.
