Lcd Display 16 Port Ethernet Switch 10 100mbps 2g Tp Sfp Ac 240v Accurate - China

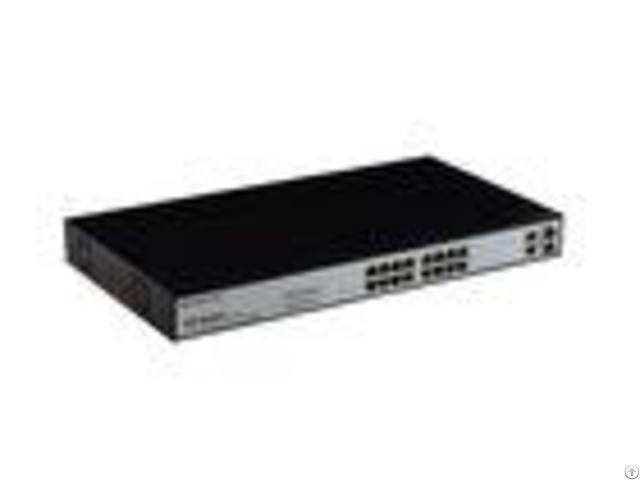

16-Port 10/100Mbps +2G TP/SFP Combo PoE Switch with LCD Display Product Overview PSL1116F is designed by Unipoe company Ethernet switch which has the fun -ction of LCD and PoE .

It contains 18 RJ45 ports and 1~16 support PoE functions, The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD).

The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.

The LCD not only can display the PoE work status, accurate judgment port of load, can also help customer and engineer timely discover and solve the network failure, improve work efficiency and quality.

Features Interface information # 16*10/100Mbps RJ45 ports # 2*10/100/1000Mbps TP/SFP Combo ports # 16 PSE ports PoE(Power over Ethernet) # Complies with IEEE802.3af/at Power over Ethernet # Supports PoE Power up to 32W for each PoE port # Auto detect power device # Remote power and Data feeding up to 100m Switch # Flow Control for Full Duplex operation and back pressure for Half Duplex Operation # 4K MAC address, automatic address learning and address aging # Support LCD display PoE Features The PSL1116F can provide up to 32 Watts of power to attached devices, such as VoIP phones, wireless access points; monitoring cameras etc, all over existing cat.

5cables.

The switch eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues.

LCD Features PSL1116F is with the function of the LCD display and PoE Ethernet switch.

The LCD can display the working condition of PoE port not only, still can accurately show the state of each port, such as: Output power, Overload, Short circuit, Light load, Low voltage, Over voltage, High temperature, and so on.

Application The PSL1116F providing 16 Port PoE in-line power interfaces, and can easily build a power centrally-controlled IP phone system, IP Camera system and Wireless AP group for the enterprise.

Cameras can be installed around the corner in the company or campus for monitoring demands.

Without the power socket limitation, It makes the installation of cameras more easily and efficiently.

Specification Hardware information - - - - Standard | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at | Network Media | 10BASE-T: UTP category 3, 4, 5 cable (100m) 100BASE-TX: UTP category 5, 5e cable (100m) 1000BASE-T: UTP category 5e, 6 cable(100m) 1000BASE-X: SMF or MMF SFP module(Optioanl) | LED | Power (Green) PoE (Orange) LINK/ACT(Green) Speed(Green) | LCD Display | Support | MAC Address Table | 4K, Auto-learning, Auto-aging | Transfer mode | Store-and-Forward | Maximum packet length | 1536 Byte | Switching Capacity | 7.2G | Dimensions (L*W*H) | 445*207*45 mm | Fan | Fan | Power Input | AC: 100~240V, 50/60Hz | Power Output | DC: 55V/ 4.5A, 55V /5.6A (Optional) | PoE(Power Over Ethernet) | PoE port | Port1~16 | PoE Power on RJ45 | Mode A 1/2(+), 3/6(-) | PoE Power Output | Voltage: 55V DC Power: 32W(Max) | PoE Power Budget | 240W/300W (According to the power) | Environmental | Operating Temperature | 0C ~ 40 C (32 F ~104F ) | Storage Temperature | -40 C ~ 70 C (-40 F ~158F ) | Operating Humidity | 10% ~ 90% non-condensing | Storage Humidity | 5% ~ 90% non-condensing | - - - - Power Supply information - - - - Power Supply | PoE Power Budget | 55V | 240W | 55V | 300W | - - - - Ordering information - - - - Model | 10/100Mbps RJ45 Port | Gigabit TP/SFP Combo | PSE Port | Internal Adapter | LCD Display | PoE Standard | ND-1116F -260 | 16 | 2 | 16 | 260W | Support | 802.3af/ 802.3at | ND-1116F -330 | 16 | 2 | 16 | 330W | - - - -
