Multi Resolution Hdmi To Hd 3g Sdi Converter 300g Synchronization Transmission - China

price: check with company for price

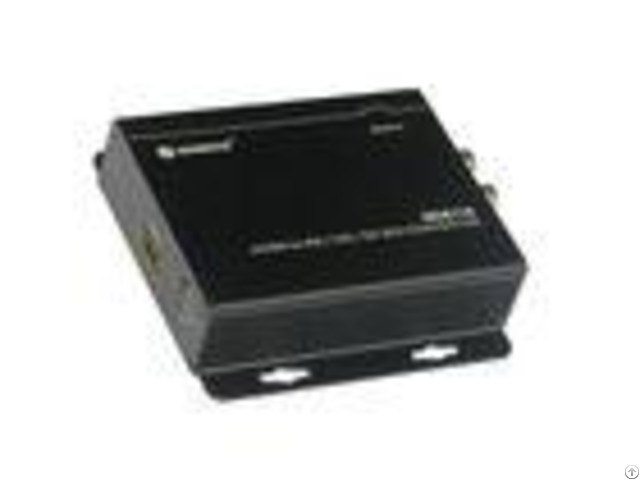

HDMI to SD/HD/3G-SDI Converter HD SDI Converter Overview Newbridge NB6110G HDMI to SD/HD/3G-SDI Converter is mainly used in converting one channel high-definition multimedia interface (HDMI) signal to high-definition serial digital component interface (HD-SDI) signal .

The device integrates SDI transmitter and HDMI demodulator, and after separate and convert HDMI audio signal, then embed to HD-SDI signal, and achieve the sound and image synchronization transmission.

The resolutions of HDMI or SDI would be forced by the console, Our products would offer multi-resolution to choice(1080p60/50/30/25 1080i60/50 720p60/50/30).

Features - - - - ND6110G | # The resolutions of HDMI or SDI would be forced by the console # One piece of 75 Coax.

cable can substitute HDMI cable to achieve long distance transmission.

# Transmission distance can be up to 120 meters (400 feet Max) for 1080p using RG-6U Cable.

# Maintains highest HDMI single link video resolution 1080P@30Hz/60Hz.

# Support digital video formats in Deep Color Mode at up to 12bits/color.

# Support full HDMI audio and video.

# Support external audio embed into SDI signal synchronously # Power supply and SDI signal format indicator | - - - - Application Diagram 4 - Dimensions Specifications - - - - Model | ND-6110G | InputInterface | 2xHDMI | Audio Input Interface | 1xAudio | FrequencyBandwidth | 225MHz/ up to standard with HDCP : HDMI 1.3 | SupportInputFormat | 480i, 576i, 720p@50/60, 1080i@50/60, 1080p@24/25/30, 1080p50/60 | SDIOutInterface | 2x BNC(SD-SDI/HD-SDI/3G-SDI) | SDI SignalRange | 0.8Vp-p | SDI Impedance | 75ohms | SDI CouplingType | ACCoupling | SDI signal jitter(typical value) | SD-SDI0.1 UI HD-SDI0.2UI 3G-SDI0.4 UI | Manual Control Output Format | 1080p60/50/30/25 1080i60/50 720p60/50/30 | Max.

OutputCoaxLength | Belden1694A SD-SDI 400m/ 1300ft ; HD-SDI 200m/ 600ft ;3G-SDI140m/ 450ft | PowerSupply | 12VDC, 1Aw/LockingPower Connector | PowerConsumption | 3~6 Watts | OperatingTemperature | -10C~60C/14F~140F | StorageTemperature | -30C~70C/-22F~158F | RelativeHumidity | 20~90%RH(Non-condensation ) | Dimension | 15812036mm/6.224.721.42in | Weight | 300g | - - - - - - - - Part No | Description of product | Unit | ND-6110G | HDMI to SD/HD/3G-SDI Converter | pcs | - - - -


Company Contact:


  • Phone: 86-755-85292891

  • Address: Rooms 1318-20, 13/F, Hollywood Plaza, 610 Nathan Road, Kowloon, Hong Kong., Shenzhen , Guangdong , China

  • Email: Email


Published date: March 20, 2018

  • Business Description: Newbridge based on Shenzhen is certified by ISO9001: 2000, we have been founde in 2004 - We have three product lines, and the first line is SMT line (surface Mounting Technology).

    there are three sets SMT high-speed device, two sets full automatic screen printer and one sets reflow Soldering in this line.
