Multifunctional 10a Dc Instrument Transformer Test Set Large Measurement Range - China

price: check with company for price

Multifunctional 10a Dc Instrument Transformer Test Set Large Measurement Range

Products Photos Catalog 10a Instrument Photos Catalog

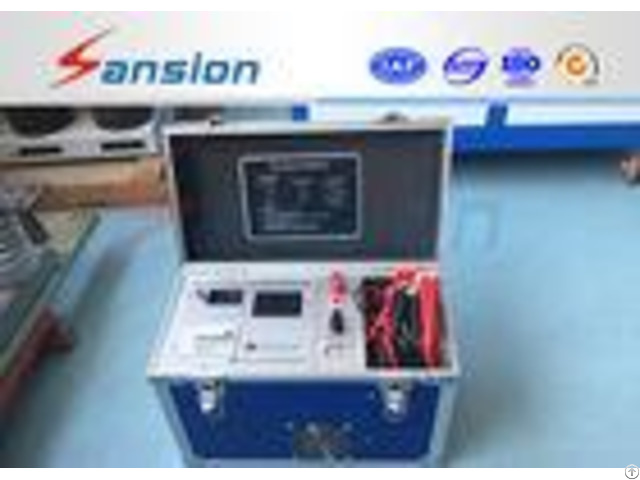

10A Transformer Test System DC winding Resistance Tester Meter General Information: SXZR-10A is single phase DC winding resistance tester which designed specifically to measure DC resistance values of transformer windings and any DC resistance of an inductive device.

Features: Controlled by high speed SCM, easy to use.

Selectable current positions, large measurement range, suitable for the DC resistance values measuring of large-medium transformers.

Full protection functions to ensure safety and availability.

Auto discharging and discharging indicator.

Intelligent power management technology, small consumption, less heating.

320X240 True color LCD screen.

Built-in thermal printer.

1000 groups' data storage no lost even power failure.

RS232 and USB interface, easy communicate with PC and U disk.

Specifications: - - - - Output current: | <5mA, 40mA, 200mA, 1A, 5A, 10A | Max.

resolution: | 0.1 | Measuring range: | 100-20K (<5mA) 1-250 (40mA) 100m-50 (200mA) 5m-10 (1A) 1m-2 (5A) 0.5m-0.8 (10A) | Accuracy: | 0.2%(2digits) | Working temperature: | 0~40C | Working humidity: | <90% RH, no condensation | Oversize: | L400mm X W200mmX H280mm | Weight: | 11KG (Including test leads) | - - - - Warranty: One year quality guarantee after shipment.


Company Contact:


  • Phone: 86-27-83385466

  • Address: Building 8, YuanYuanXin Industrial Park, DongXiHu District, Wuhan, China, Wuhan , Hubei , China

  • Email: Email


Published date: March 22, 2018

  • Business Description: From the date of order placing, we usually need 3-7 working days to manufacturing.

    Located in Wuhan City, the provincial capital of China, Sansion Power is easy to ship the package by the air or ocean.

    Sansion Power also can provide OEM service according your customized.
