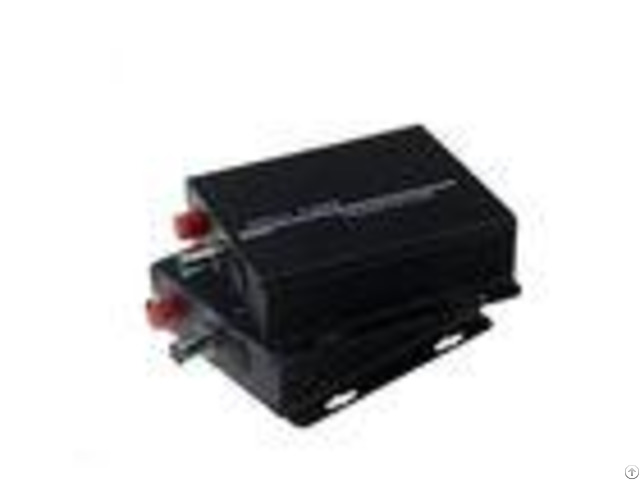

Oem 75 1310nm Hd Tvi Cvi Ahd Transmitter Receiver 720p Fiber Optical - China
price: check with company for price
OEM 1ch AHD/CVI/TVI fiber optical transmitter and receiver Features: CVI/TVI/AHD TO Fiber Converter can simultaneously transmit 1-16 channels CVI/TVI/AHD over one multimode or single-mode optical fiber.
Electronic and optical adjustments are never required.
LED indicators are provided for instantly monitoring system status.
Devices are available for either standalone or rack-mount installation, which is suitable for different working environment .
Compatible with720P/ 1280H/25f, 720P/1280H/30f, 720P/1280H/50f, 720P/1280H/60f.
Lossless non-compression real time transmission.
Opitcal: - - - - Wavelength | 1310nm&1550nm | Output Power | -8~3dBm | Optic fiber | 50/125u multimode, 62.5/125u multimode, 9/125u single mode | Rx sensitivity | -25dBm | Optical connector | FC, ST, SC (optional) | Distance | 0~550M (MM) / 0~20KM (SM) | - - - - Video: - - - - Number of Channels | 1/2/4/8/16 | Input/output impedance | BNC 75 (unbalance) | Standard video input/output voltage | 1.0Vp-p | Video Bandwidth | 45MHz | Sampling Bandwidth | 10bit | Sampling Frequency | 108MHz | Rise and Fall time | <0.8ns | Optical Signal Intrinsic Jitter | <0.2 UI | Differential Gain | < 1.5% | Differential Phase | < 1 | Connector | BNC | - - - - Other - - - - Power | DC5V 2A | Power Consumption | 6W | Temperature | -40C ~75C | Humidity | 10%~90% RH | Unit Weight | 1.45KG(pair) | Dimension | | Installation | Wall mount | MTBF | 100000Hours | - - - - Connection Diagram order info - - - - Part No | Description of product | Unit | ND-AC1V1D-S20 | 1ch video+1chreturn data, 20KM, FCinterface | pcs | - - - -
