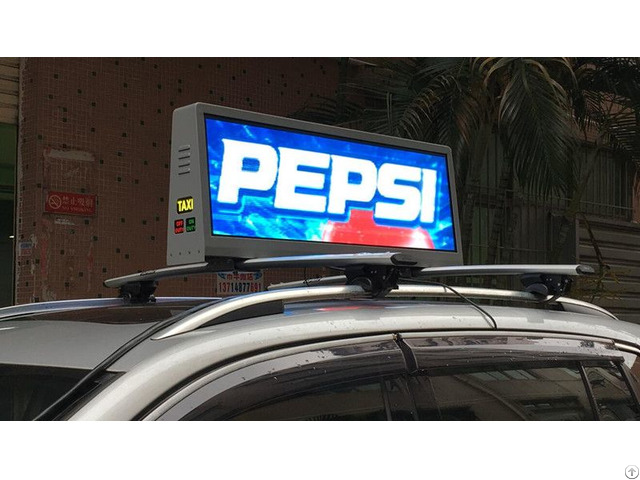

P3mm Taxi Top Led Display - China

Product name: P5 P2.5 P3 Model Type: TS59632 TS3VF TS3OT

Pixel Pitch 5mm 2.5 mm 3mm

LED Type SMD 2727 SMD 2121 SMD2020

Pixel Density 40000 dot/ m2 160, 000 dot/ m2 111, 111 dots

Module Size 160*160mm 160*160mm 192*96mm

Screen Size 960mm*320mm 960mm*320mm 768*288mm

Screen Resolution 192*64 dot 384*128 dot 192*96mm

Frame Size 1100mm( L) x 410mm(H) XW: 164mm(bottom)/ 99mm (top) 1100mm( L) x 410mm(H) XW: 164mm(bottom)/ 99mm (top) 820mm( L) x 390mm(H) X W: 170mm(bottom)/ 99mm (top)

Brightness 5500 nit 5000 nit 3500 nit

Contrast 8000: 1 8000: 1 8000: 1

View Angle 150°(H)/150°(V) 150°(H)/150°(V) 150°(H)/150°(V)

Scan Mode 1/8 scan 1/16 scan 1/16 scan

Power Supply Input DC9--24V DC9--24V DC9--24V

Max Consumption 450w 480w 250w

Average Consumption 150w 180w 80w

Refresh Rate(Hz): Ordinary: .

=85Hz Ordinary: .

=85Hz Ordinary: .

=85Hz

1920Hz 1920Hz 1920Hz

Optimal Viewing Distance 3--50M 1--20M 3--50M

Life Span 100, 000 Hours 100, 000 Hours 100, 000 Hours

MTBF 10, 000 Hours 10, 000 Hours 10, 000 Hours

Control Method Asychronous Asychronous Asychronous

Control Mode 3G/4G/WIFI/ Ethenet/ USB 3G/4G/WIFI/ Ethenet/ USB 3G/4G/WIFI/ Ethenet/ USB

Temperature Operating -40°～+75° -40°～+75° -40°～+75°

Working Humidity 10%–90%RH 10%–90%RH 10%–90%RH

Protection Rating: IP65 IP65 IP65

Power Protection over-temperature/over-cur rent/ over-temperature/over-cur rent/ over-temperature/over-cur rent/

over-voltage protection over-voltage protection over-voltage protection

Screen Weight 23 kg 26 kg 15kg

Package Dimension 1100mm(L) X 500mm(H) X 270mm(W) 1100mm(L) X 500mm(H) X 270mm(W) 960mm(L) X 430mm(H) X 210mm(W)

Gross Weight: 30 kg 32 kg 19kg

Certificates CE.

ROHS CE.

ROHS CE.

ROHS
