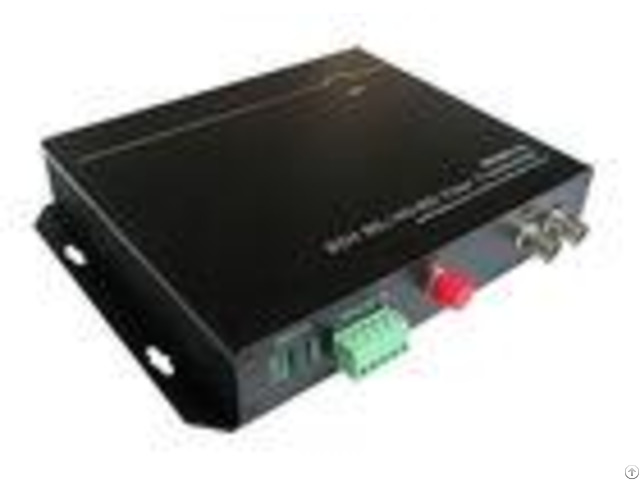

ND8012D SD/HD-SDI Optical 1 - Overview Newbridge ND8012D HD-SDI Optical Transceiver is a perfect and economic transmission device to transmit SD/HD-SDI video to up to 60KM and Plus, embedded audio and RS485 data via fiber-optic.

Transmitter is used as sending and Receiver is used as receiving .

System support in accordance with SMPTE292M, SMPTE259M standard, as well as DVB-ASI (EN50083-9) digital TV signal format.

- - - - ND8012D | l Support 2 channel SD/HD video embedded audio signal via fiber l SD, HD auto-detection, supported transmission rate from 270M bit/s to 1.485G bit/s l Transmission distance is from 0km to 40KM via multimode fiber or single mode fiber.

l Support SMPTE 259M (1.485Gbps), SMPTE 259M (270Mbps) and DVB-ASI l Support plug and play function l Operation status indication by LED | - - - - 3Application Diagram 4 - Dimensions 5 - Specifications - - - - Model/Name | ND-8012D | Quantity/Type | Single Mode, Single Fiber | Video port | 2CH BNC SD/HD-SDI | Transmission Distance | 0m-20Km/40km/60KM optional | Fiber Connector | FC | Wave Length | 1310nm/1550nm | Transmitted power | -10dbm-3dbm | Maximum Receiving Sensitivity | <-34dbm | Signal Type | SD-SDI(270Mbps)/HD-SDI(1 - 485Gbps) | Support Input Format | SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @23.98Hz/24Hz/25Hz/29Hz/3 0Hz | Video Standard | SMPTE 292M, SMPTE 259M | DATA comm.

method | 2CH RS-485/Half duplex/ Industrial terminals | In-out electrical level | 800mVp-p10% | In-0ut Ohm | 75Ohm | Digital Audio | 48KHz | AES digital audio channel | 8CH | Power Supply | 5~24DC | Power Consumption | 3~5 Watts | Operating Temperature | 0C ~ 60C / 32F ~ 140F | Storage Temperature | -30C ~ 70C / -22F ~158F | Relative Humidity | 20~90% RH (Non-condensation) | Dimension | 176 x 146 x 30 mm / 6.97x 6.75x 1.18 in | Weight | 900g (Tx and Rx) | - - - - 6 - Order Information - - - - Part No | Description of product | Unit | ND-8012D-Tx | SD/HD-SDI Optical-Transmitter | pcs | ND-8012D-Rx | SD/HD-SDI Optical-Receiver | pcs | - - - -
