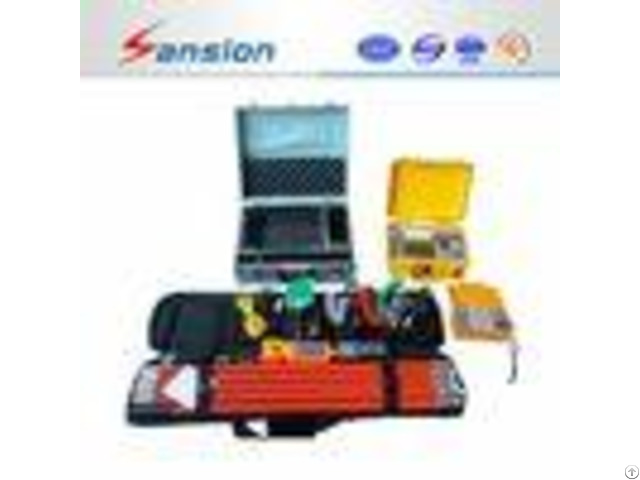

Portable MOA Metal Oxide Arrester Tester Lightening Test System General information: SXYZ-IV Metal Oxide Arrester Tester is a preventive on-line/on-site test tool to check the health of Metal Oxide Arresters of different voltage levels.

It can detect dangerous problems inside the arresters such as insulation moisture and valve plate aging.

Features: # Large LCD screen, English interface, easy to operate.

# Measurement process is controlled by SCM, MOAs measuring including: full current, resistive current and harmonic, power frequency reference voltage and harmonic, active power and phase difference, the current and voltage true waveform to be displayed in LCD screen.

# High precision sampling and processing, advanced Fourier harmonic analysis technology, to ensure the test data be more reliable.

Fundamental harmonica and 3~7 times harmonic content could be analyzed accurately.

# High speed magnetic isolating sensor to sample the input voltage and current signal directly, and guarantee the reliability and security of data.

# PT secondary wire connection could be instead by electric inducting or wireless transmitting.

# Resistive current could be measured directly without connecting PT secondary.

# Six test ways is more convenient for the user.

# Three phases measuring simultaneously and auto compensated.

# Designed with resistive current fundamental harmonic peak value output and side phase calibrating functions.

# Build-in high speed printer, and rechargeable battery.

# 200 groups arrester ID storage.

Specifications: # Full current measuring range: 0~10mA effective value (20mA is option) # Accuracy: (read5%+5uA) # Resistive current fundamental harmonic measuring accuracy (wire exclude phase interference): (read5%+5uA)Current harmonic measuring accuracy: read10%+10uA) # Current channel input resistance: 2 # Reference voltage input range: 25V~250V (effective value) # Accuracy: (read5%+0.5V) # Voltage harmonic measuring accuracy: (read10%) # Reference voltage channel input resistance: 1800k # Battery duty: continuously working above 8 hours # Battery charging: Above 6 hours # AC charging: AC 220V 10%, 50Hz 1% # Weight: 5kg (exclude cable box) # Oversize: 34cm22cm20cm Warranty: One year quality guarantee after shipment.

More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation.

Thank you!
