Pure Sine Wave Ac Resonance Test System Busbar Gis Cable Insulator For Factory - China
price: check with company for price

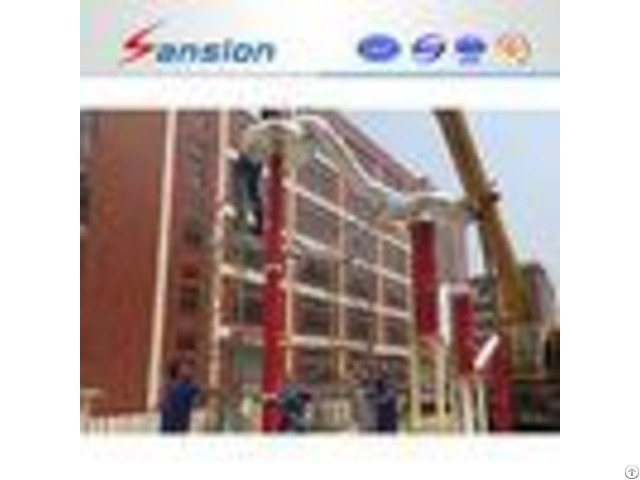

AC Resonant Test System For Busbar GIS Cable Insulator AC resonant test system is used for factory testing of middle, high and ultra-high voltage cables, capacitors, generators, motors, power transformers and gas-insulated switchgears.
Test object and requirements 1 - 220KV 800mm2 cable 3000m, testing frequency is 30-300Hz, testing voltage 216KV.
2.110KV line insulator, switchgear, GIS, which test object without capacity.
Testing frequency is 30-300Hz, the largest testing voltage 265kV.
3.35KV, 300mm2 cable 12000m, testing frequency is 30-300Hz, testing voltage 52KV.
4.110KV/6300000KVA neutral point connect with earth main transformer directly, testing frequency is 30-300Hz, testing voltage 76KV.
5.110kV, 500mm2 cable 6000m, testing frequency is 30-300Hz, testing voltage 128kV.
6.110KV busbar, testing frequency is 20-300Hz, testing voltage 185kV.
Company Contact:
- Posted By: Sansion Power Electric Co., Ltd.
- Phone: 86-27-83385466
- Address: Building 8, YuanYuanXin Industrial Park, DongXiHu District, Wuhan, China, Wuhan , Hubei , China
- Email:
- Website: https://www.powertestingsystem.com
Published date: March 21, 2018
- Business Description: From the date of order placing, we usually need 3-7 working days to manufacturing.
Located in Wuhan City, the provincial capital of China, Sansion Power is easy to ship the package by the air or ocean.
Sansion Power also can provide OEM service according your customized.
