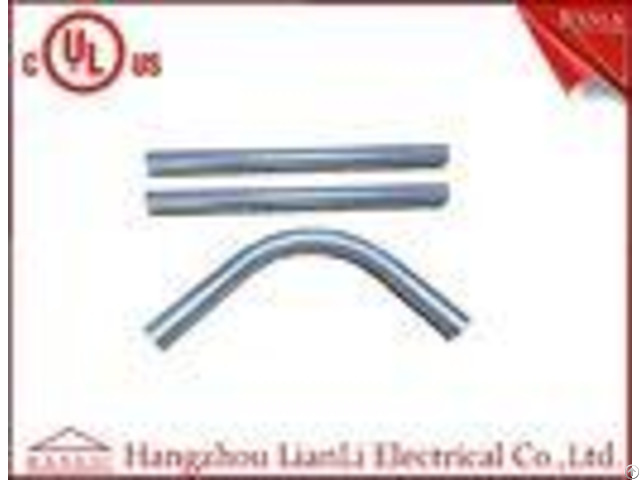

Ranlic Rigid Steel Emt Electrical Conduit For Industrial Commercial Use - China

Ranlic Carbon Steel Hot Dip Galvanized UL Listed Electrical EMT Conduit 1/2" to 4" Available UL FILE NO.

E469551 General: The EMT/IMC/RIGID conduit is manufactured from a mild steel tube, It has an accurate circular cross section, a uniformand wall thickness, a defect free interior surface.

Highly required customers also can remove the inside welded seam to 100% protection with the electrical wire(only for the hot dip galvanized finish conduit) RanLic Steel Electrical Metallic Tubing is manufactured in accordance with lastest edition of U.S. standard, For EMT/IMC/RIGID and its associated tubular fittings are produced in nominal trade size from 1/2" to 4", is produced in standard lengths of 10 feet(3.05 m).

Application: The conduit provides top mechanical strength and protection for electrical cabling.

Inside welded bead controlled to a minimum for easier wire pulling(for pre-galvanized finished conduit).

For electrical wiring For industrial & commercial installation and giving high load bearing capacities.

It provides excellent mechanical protection for the conductors while reducing Electro-Magnetic Field exposure and shielding.

the hot-dip galvanized conduit pipe also can be used in the rough condition such as tunnel and underground.

Features: Pre-Galvanized and hot dip galvanized with a minimum coating designation of G180, Q195, rolled steel coil, Packed in bare bundles, IMC/RGD fitted with zinc-coated coupler on one end and the unsocket one ends protected with plastic caps.

EMT pipe do not come with plastic caps unless ordered, conduit pipe caps also come different colore optioned by customer Each lot of conduit pipe before shipping out all will be testing by the cupric sulfate 200 hours testing to assure the inside and outside galvanized is in perfect condition.

Rigorous quality control procedures to ensure process and product consistency Size & details: - - - -

TRADE SIZE | ITEM No.

| OUTSIDE DIAMETER | STANDARD | THIN WALL | QUANTITY | GAL.

| US | MIN | MAX | THICKNESS | THICK NONE UL | PER LIFT | THICK | 1/2" | RL-E460 | 17.88mm | 17.93mm | 1.070.05mm | 0.85mm | 100*10ft | 40 micron | 3/4" | RL-E461 | 23.36mm | 23.42mm | 1.250.05mm | 0.90mm | 100*10ft | 40 micron | 1" | RL-E462 | 19.49mm | 29.54mm | 1.450.05mm | 1.00mm | 100*10ft | 40 micron | 1-1/4" | RL-E463 | 38.30mm | 38.35mm | 1.650.05mm | 1.25mm | 50*10ft | 40 micron | 1-1/2" | RL-E464 | 44.15mm | 44.20mm | 1.650.05mm | 1.25mm | 50*10ft | 40 micron | 2" | RL-E465 | 55.75mm | 55.80mm | 1.650.05mm | 1.25mm | 30*10ft | 40 micron | 2-1/2" | RL-E466 | 72.98mm | 73.03mm | 1.830.05mm | 1.60mm | 30*10ft | 40 micron | 3" | RL-E467 | 88.30mm | 88.90mm | 1.830.05mm | 1.60mm | 20*10ft | 40 micron | 3-1/2" | RL-E468 | 101.00mm | 101.60mm | 2.110.05mm | 1.80mm | 10*10ft | 40 micron | 4" | RL-E469 | 114.20mm | 114.30mm | 2.110.05mm | 1.80mm | 10*10ft | 40 micron | - - - - Why Choose Ranlic EMT Conduit: We are now have six countries agent and easy to get the samples locally.

When start buying our products, if destination markets growing fastly ranlic will pay advertisment in customer's market to help our customer publishing our brand.

Quick shipment and fine package help you have good condition when containers arrived.

Company Contact:

• Posted By: Hangzhou lianli electrical company

• Phone: 86-571-82834073

• Address: Linyi Village,Linpu Town,Xiaoshan District, Hangzhou , Zhejiang , China

• Email:

• Website: https://www.conduitsfittings.com

• Business Description: Hangzhou LianLi Electrical Co., Ltd.

  A UL & CUL LISTED COMPANY

  　 Background & Purpose:

  　 LianLi(Trade Mark: RanLic) Electrical being in electrical conduit industry more than five years, from 2006-2010, we were mostly doing the trade before , after 2010, we incooperated our factory start to produce the general conduit products for our customers, .

  right now our manufacturing products cover 80% of conduit products, at the start of our conduit biz, we are keening on the quality, LianLi does more than give people quality, service to enjoy.

  The company is actively involved in providing quality project solution, new conduit products development and general conduit products improvement.

  Our biz expand fastly, but we know it is not enough just for sales volume, we know we have responsibility to keep same service to our old customer and keep moving to cooperate with our potential customers, no matter new or old customers we will keep same quality products and same service.

  Products:

  EMT CONDUIT, IMC CONDUIT, RIGID CONDUIT, BS4568 CONDUIT, BS31 CONDUIT, STEEL ACCESSORIES FOR CONDUIT, ALU.

  DIE CASTING CONDUIT FITTINGS, ZINC DIE CASTING CONDUIT FITTINGS, BRASS ACCESSORIES, FLEXIBLE CONDUIT, ETC.
