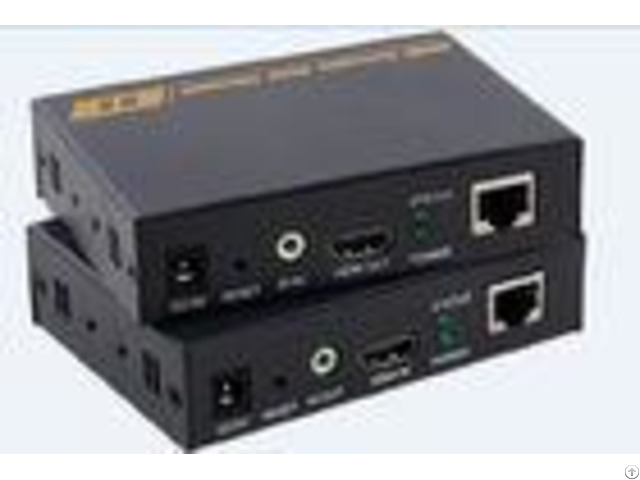

Resolution 1080p Hdmi Fiber Optic Extender Clear Stable With Ir Control - China
price: check with company for price
HDMI Fiber Optic Extender with resolution 1080P, IR control 1 - Overview ND1104 HDMI extender via cat5 is used to extend HDMI audio and video via twist pair up to 150M.
The Kit device includes a transmitter and a receiver .
At the same time, this product support the built-in IR remote control function.
- - - - | l Support HDMI 1.3/HDCP1.1 & 1.2 l Transmission distance is up to 150M via twist pair l Support IR remote control l LED indicator to show work status | - - - - 2 - Panel Description LED indications description : - - - - 5V/1A | Supply power | RESET | Hold down the key for 10 seconds, the model will Restore the default setting | IR-OUT | Connect IR transmitter to this Port.
| HDMI - IN | Connect HDMI Source to this Port.
| STATUS | When system start up, the Green LED will be on, When transmit video, the led will blink.
| HDMI - Out | Connect HDMI sink device to this Port.
| Power | Power on, The Red led is on | - - - - 3 - Specifications - - - - Type | HDMI extender over cat5/6 | HDMI Resolutions | 480p, 576p, 720p 25/30/50/60, 1080p 25/30 | Audio | Sample rate: 32kHz, 44.1kHz and 48kHz | IR remote control | 38KHz; NEC | HDMI | HDMI 1.3 | HDCP | HDMI 1.2 | Power adapter | Input: 100V - 240V (50 - 60Hz) Output: 5V/1A | Power consumption | 3W | Size(L-W-H) | 1006025mm | Weight | 70g | Operating Temperature/Humidity | 0 - 70 / 10% - 80%RH(no condensation) | Storage Temperature/Humidity | -10 - 80/ 5% -90% RH(no condensation) | - - - - .
Application : 1) 1 transmitter to 1 receiver application - - - - | | | - - - - 2) 1 transmitter to N receiver application :
Company Contact:
- Phone: 86-755-85292891
- Address: Rooms 1318-20, 13/F, Hollywood Plaza, 610 Nathan Road, Kowloon, Hong Kong., Shenzhen , Guangdong , China
- Email:
Published date: March 21, 2018
- Business Description: Newbridge based on Shenzhen is certified by ISO9001: 2000, we have been founde in 2004 - We have three product lines, and the first line is SMT line (surface Mounting Technology).
there are three sets SMT high-speed device, two sets full automatic screen printer and one sets reflow Soldering in this line.
