Sd Hd Passive 3g Repeater 8 Piece One Sdi Port With Re Clocking Function - China

price: check with company for price

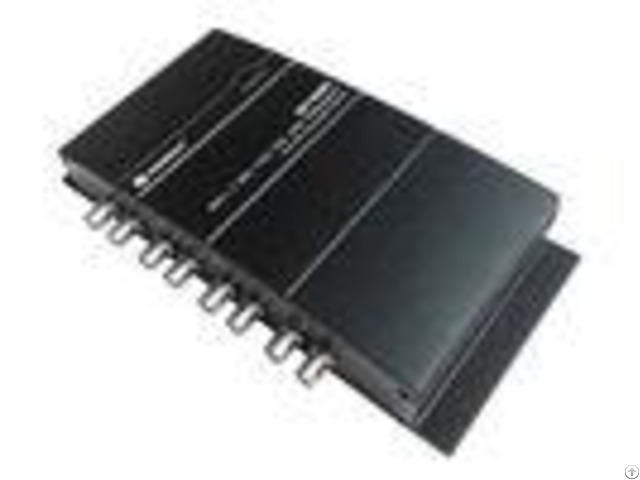

Sd Hd Passive 3g Repeater 8 Piece One Sdi Port With Re Clocking Function

Products Photos Catalog Passive Repeater Piece Photos Catalog

8X1: 1SD/HD/3G -SDI Repeaters with Re-clocking function 1 - Overview Newbridge ND1102BD 8X1: 1SD/HD/3G -SDI Repeaters with Re-clocking function.

These devices receive eight SDI input at the same time and perfectly duplicates them.

Then they re-transmit eight channel SDI outputs for real time multi-viewing.

They are reliable video devices splitting eight SD-SDI or HD-SDI or 3G-SDI video source to SD or HD-SDI or 3G-SDI display at the same time and takes eight input then re-clocks and equalizes the signal and distributes it to eight identical outputs.

2Features - - - - ND1808G | l SDI Standard: HD-SDI, SD-SDI l Data Rates: 270Mbps/1.485 Gbps/2.97Gbps l Signal Type: SMPTE 292M, SMPTE 259M l Two separately buffered outputs l Cable equalization (Beldon 1694A) retiming and signal l Re-clocking function capability unlimited repeater connection l Dual color LED indication of nput locik and rate l Pass all ancillary data # 5V~24V DC | - - - - 3Application Diagram 4 - Dimensions ND1808G 5 - Specifications - - - - Model | ND8018G | Video In | 8 piece one SDI port | Video Out | 8 piece one SDI port | Input Signal Type | SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI(2.97Gbps) | Support Input Format | SD-SDI: 480i, 576i HD-SDI: 720p24/25/30/50/59.94/60 all frame rate; 1080i all frame rate, 1035i all frame rate; 1080p all frame rate 3G-SDI: 1080p all frame rate | SDI Signal Range | 0.8V p-p | SDI Impedance | 75 ohms | SDI Coupling Type | AC Coupling | Input Power | DC 12V/250mA | Max.

Distance | Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ;3G-SDI 140m / 450ft | Re-clocking | Auto Support 270Mbps/1.485Gbps/2.97Gbp s | Power Supply | 5V~24V DC | Connection Port | BNC-F (75) | Operating Temperature | -10C ~ 60C / 14F ~ 140F | Storage Temperature | -30C ~ 70C / -22F ~158F | Dimension | 14023040mm/5.519.071.57in ches | Weight | 670g | - - - - 6 - Order Information - - - - Part No | Description of product | Unit | ND1808G | 8X1: 1SD/HD/3G -SDI Repeaters | pcs | - - - -


Company Contact:


  • Phone: 86-755-85292891

  • Address: Rooms 1318-20, 13/F, Hollywood Plaza, 610 Nathan Road, Kowloon, Hong Kong., Shenzhen , Guangdong , China

  • Email: Email


Published date: March 20, 2018

  • Business Description: Newbridge based on Shenzhen is certified by ISO9001: 2000, we have been founde in 2004 - We have three product lines, and the first line is SMT line (surface Mounting Technology).

    there are three sets SMT high-speed device, two sets full automatic screen printer and one sets reflow Soldering in this line.
