Simple Install Hdmi Optical Fiber Extender With Resolution 1080p Ir Control Anti Lightning - China

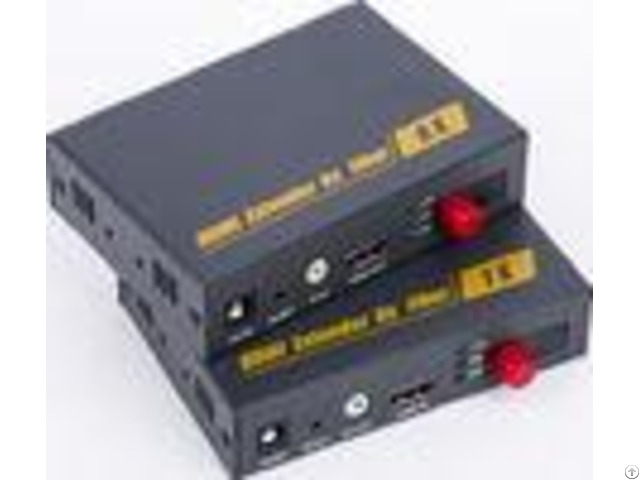

HDMI Fiber Optic Extender with resolution 1080P, IR control Description The PW-DT200 Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P and IR transmission.

The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features # Transmits HDMI video and audio signals up to 20km over one fiber optic cable; # Support video resolution up to 1920*1080@60Hz; # Support IR transmission; # Compliance with HDMI 1.3 and HDCP 1.2 standard; # High compatibility, can auto-match source and display device; # Built-in automatic adjustment system, make the image smooth, clear and stable; # Built-in ESD protection system; # Simple to install, plug and play Specifications - - - - Parameter | Description | Video | Standards | HDMI 1.3; HDCP 1.2 | Maximum pixel clock | 165MHz | Maximum data rate | 6.75Gbps | Resolution range | Up to 1920X1080P@60Hz | Connector | Female HDMI type A | Impedance | 100 | Infrared | Interface | 3.5mm earphone seat | Signal type | Digital | Transmission direction | Unidirectional | Carrier frequency | 38kHz | Optical fiber | Interface | SC/FC connector | Fiber type | Single Mode | Wavelength | 1310nm, 1510nm | Interface bandwidth | 155Mbps | | Transmission distance | Standard: 20km; | Other | Power supply | The power adapter: DC 5V/2A | Power dissipation | MAX 5W | Temperature | Operating: -5 ~ +70 | Humidity | Operating: 5% ~ 90% | Dimension | 113*80*28mm | The warranty | 1 year free warranty | - - - - Panel Transmitter: Receiver: - - - - Port name | Description | HDMI IN/OUT | HDMI signal input/output | IR IN/OUT | Infrared signal input/output | FIBER | Optical fiber interface | DC/5V | Power adapter socket | RESET | Restore button, press for 5 second to restore system setting to factory default | LED indicator | Description | LINK | Optical fiber signal connection indicator | STA | Video signal connection indicator | PWR | System power indicator | - - - - Package list # HDMI optical fiber transmitter .

1 pcs # HDMI optical fiber receiver .

1 pcs # IR TX/RX Cable 1 set # Power adapter .

2 pcs # User manual .

1 pcs Installation # Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver, # Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source, # Connect the HDMI output port of receiver to the display device with HDMI cable, # Connect the transmitter optical port to the receiver optical port using one fiber optic cable, # IR function---connect the IR TX cable to the HDMI transmitter, connect IR RX cable to the HDMI receiver, and the IR TX must face to the controlled device.

Diagram Warranty Thank you very much for using our products.

The warranty time is one year and life-long maintenance.

During this period, any belongs to under normal usage circumstance cause because of the product qualitys problem of breakdown, our company will be responsible for giving free maintain.

Free maintain wont be given under the following circumstance: # The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration; # The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage; # The product malfunction caused by not in accordance with the user manual operation; # The malfunction and damaged caused by the other barriers(man-made factors or external device);
