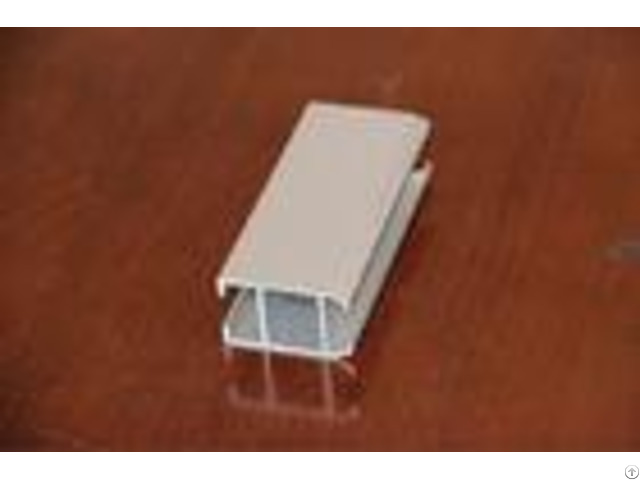

Structural Aluminum Door Extrusions Profiles Electrophoresis - China

Structural Aluminum Door Extrusions Profiles, Electrophoresis # # Material: Aluminum # Alloy : 6063, 6061, 6060, 6005 # Temper: T3, T4, T5, T6 # Deep process: Milling, Drilling, Bending, Cutting Description The surface treatment : 1) Mill Finished 2) Anodized : Silver, champagne, light bronze, dark bronze, black, light titanium, dark titanium.

Usually the thickness of the film is 10 um.

3) Electrophoretic coated : Silver, champagne, bronze, black, light bronze, dark bronze .

4) Powder spray coated : Normal color, special color.

Thickness : 60 to 80 um .

5) Fluorocarbon powder spray coated /PVDF Paint : Normal color, special color .

6) Drawbench 7) Steel polished 8) Wood grain coated /Wooden transfer : Imported paper, domestic paper .

Technical requirements 1) Standard: GB/75237-2004, Q/320281/PDWD-2008 2) Certification: ISO9001 3) OEM service offered 4) Material: Alloy 6063, 6061 or according to customer s choice Temper: T3, T4, T5, T6 5) Fabrication : 1 - Milling; 2 - Drilling; 3 - Bending; 4 - Cutting.

6) Window Accessories: Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.

7) MOQ : 1 ton.

Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

8) FOB Port: Shanghai Port Applications: Used in casement doors and windows for living room, dinner room, bathroom, office room, meeting room, restaurant, hotel, etc.

Specifications: 1 - Primary Technical Data 1)Chemical composition - - - - Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al | 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest | 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest | 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest | 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest | - - - - 2)Mechanical property - - - - Alloy | Temper | Tensile strength | Yield strength | Elongation | 6063 | T5 | 160Mpa | 110Mpa | 8% | T6 | 205Mpa | 180Mpa | 8% | 6061 | T6 | 265Mpa | 245Mpa | 8% | - - - - 1 - Alloy : 6063, 6061, 6005 or according to customer s choice 2 - Material: Aluminum 3 - Suface Treatment: Mill Finished, Anodized, Electrophoretic coated, Powder spray coated, Fluorocarbon powder spray coated /PVDF Paint, Drawbench, Steel polished, Wood grain coated /Wooden transfer .

4 - Deep process: Milling, Drilling, Bending, Cutting.

5 - Application: Used in casement doors and windows for living room, dinner room, bathroom, office room, meeting room, restaurant, hotel, etc.

6 - Color: clear, satin, bronze, black, golden, silver, other multicolor 7 - Temper: T4, T5, T6, T66 2 - Specifications : Competitive Advantage: 1)Engineering design and support.

2)Aluminium profiles deeply processing: cutting, punching, drilling, milling, and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.
