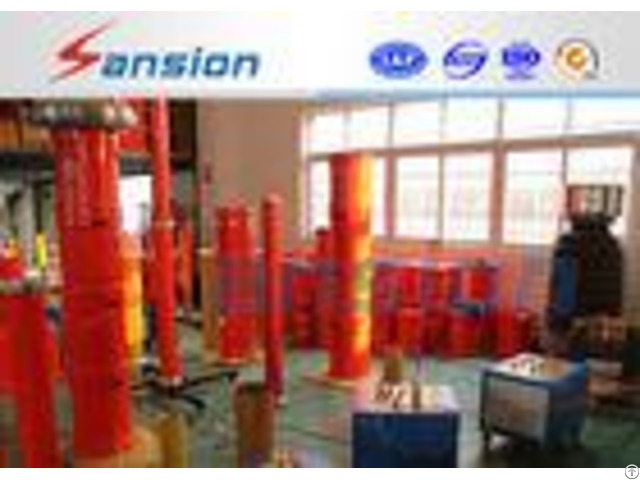

Sxbp G Variable Frequency Ac Resonance Testing Machine Withstand Voltage 220 Kv - China

Sxbp - Power Frequency Series AC Resonance Testing Machine for Generator General Information SXBP-G Generator AC Hipot Resonance Test System mainly applied for 0~220kV substation and electric power equipments, including transformer, GIS system, SF6 switchgear, cable, bushing and etc capacitative equipments' AC hipot withstand testing.

Features 1 - Smaller size, lighter weight compared with same voltage level, same capacity generator AC withstand voltage test equipments.

Single equipment is no more than 60kg, easy to move.

2 - Advanced principle of whole set device and new frequency&inductance modulation technology, strictly ensure generator power frequency withstand voltage test requirements.

Wide application scope.

3 - Equipped with 20Hz-300Hz variable control source.

Good protection and output waveform, high stability.

With multiple working mode, easy to operate.

4 - Flexible configuration and strong extension.

Meet all capacitive test object testing requirements in power system.

5 - Power frequency test mode or Variable frequency test mode.

6 - Multi-use, cost-effective.

Specifications 1 - Rated output voltage: 0 ~ 100kV (RMS) or below.

2 - Output frequency: 45 - 300Hz.

3 - Max.

capacity: 2000kVA or below.

4 - Duty cycle: continuous working 15/60 mins one time at full power output.

5 - Waveform: pure sine wave, THD 1%.

6 - Quality factor: 10 - 40 - 7 - Frequency adjustment sensitivity: 0.01HZ, instability of <0.05%.

8 - Power supply: 220V or 380V 15%, 50HZ 5%.

Solutions (Power Frequency) for reference - - - - Model | Application Capacity Scope of Generator (F) | Reactor Configuration | Weight | SXBP-(G) 22/44-88 | 0.07~0.13 | 22KV/1A 2 Fixed Reactors | 22KG | 44KV/1A 1 Variable Reactor | 38KG | SXBP-(G) 22/44-132 | 0.13~0.2 | 22KV/1.5A 2 Fixed Reactors | 32 KG | 44KV/1.5A 1 Variable Reactor | 42 KG | SXBP-(G) 22/44-198 | 0.2~0.27 | 22KV/1.5A 4 Fixed Reactors | 32 KG | 44KV/1.5A 1 Variable Reactor | 42 KG | SXBP-(G) 22/44-220 | 0.27~0.33 | 22KV/1A 4 Fixed Reactors | 25 KG | 44KV/1.5A 1 Fixed Reactor | 42 KG | 22KV/1.5A 2 Variable Reactors | 32 KG | Note: 1 - Above reactors could be supplied by variable frequency power source and power frequency power source as well.

2 - The variable frequency controlling source and exciting transformer are settled according to the test objects.

3 - All the solutions are according to the test objects.

| - - - - Warranty: One year quality guarantee after shipment.
