100g 100gbase Qsfp28 Sr4 100m Optical Transceiver Module - China

QSFP28 SR4 100G Description

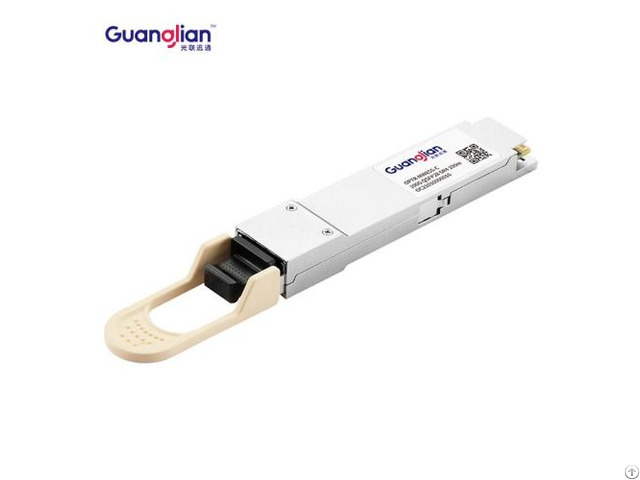

Guanglian's QSFP28 SR4 100G Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) with MTP/MPO-12 connector.

This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard.

Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters.

It is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise networks etc.

Product Features

COB (Chip on Board) packaging technology

Supports 25.78125Gb/s per channel and 103.1Gb/s aggregate bit rate

Up to 70m transmission with OM3 multi-mode fiber

Up to 100m transmission with OM4 multi-mode fiber

Low Power Dissipation ≤1.8W

Single MPO12 receptacle

Operating Case Temperature: 0℃~70℃

Intelligent Auto-Negotiation for 100Gb/s and 40Gb/s

Application

100GBASE-SR4 Ethernet

InfiniBand EDR, FDR, & QDR

Proprietary Interconnections

Data Center Intra Networking

Selection Guide: 100G QSFP28 SR4 Transceiver

P/N Package Data Rate Interface Temp Reach Tx Optics Rx Optics Laser Lambda Detector Lambda

OPTR-MW85S-C QSFP28 4*25Gb/s MPO 0-70 100m VCSEL 850nm PIN 850nm
