100gbase Qsfp28 Swdm4 850nm 100m Lc - China

price: 300.00 Dollar US$

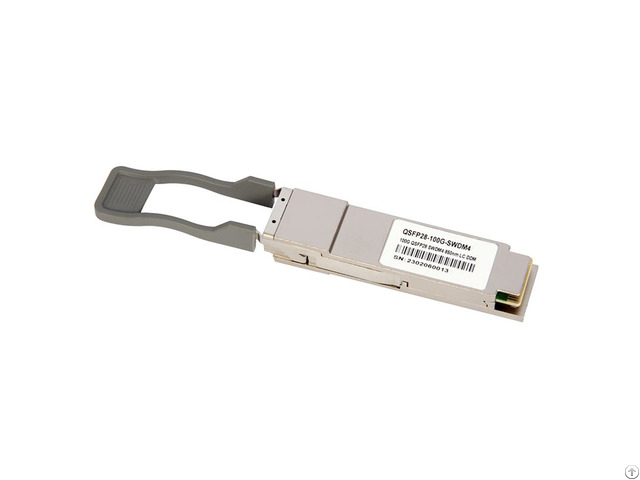

100gbase Qsfp28 Swdm4 850nm 100m Lc

Products Photos Catalog 100gbase Qsfp28 Swdm4 Photos Catalog

100GBASE QSFP28 SWDM4 Optical Transceiver Module (MMF, 850nm, 100m, Duplex LC, DOM) The 100G QSFP28 SWDM4 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber.

Four channels/lanes in the 850-940nm region @ 25.78Gbps to transport the Ethernet signal.

Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA.

100 100GBASE QSFP28 SWDM4 850nm 100m LC Applications

100G Ethernet over Duplex MM 100GBASE QSFP28 SWDM4 850nm 100m LC Feature

Compliant with QSFP28 MSA

Compliant with SWDM MSA

Compliant with IEEE802.3bm CAUI-4

Hot-pluggable QSFP28 form factor

4x25Gb/s 850mm VCSEL-based transmitter

Supports 103.1Gbps aggregate bit rate

Power dissipation<3.5W

Maximum link length of 150m on OM5 multimode Fiber

Case temperature range of 0°C to 70°C

Duplex LC receptacles

CAUI-4 electrical interface

RoHS compliant


Company Contact:


  • Phone: +8675523777185

  • Address: 8819 , Shenzhen , Guangdong , China

  • Email: Email


Published date: November 7, 2023

  • Business Description: Shenzhen htfuture Co., Ltd is a professional supplier of fiber optic products and WDM systematic solution.

    Was built by a team who has more than 10-year experiences in optical communication product R&D, fiber solution, component developing and manufacturing.

    HTFuture supplies a broad range of communication solutions products including wavelength division multiplexer(WDM/CWDM/DWDM /OADM), Fiber Optic Transceivers(SFP, SFP+, XFP, 10G QSFP+, 40G QSFP+ and 100G CFP2), OEO Converter Repeater, Ethernet Media Converter, Fiber Optical Patch cord and Fiber Optical assembly.

    Currently our products are widely used in Telecommunication, CATV, FTTX, WANs, LAN, Gigabit&10 G Ethernet, SDH/SONET, Fiber Channel, Roadway safety, Data-video Transmission, Long-distance monitoring, Military and many other fields.

    The aim of HTFuture is provide you quality products, gratified service and fast delivery.
