1080p 2 Mega Pixels Full Hd Ptz Camera Infrared Analog Ahd Sdi Ip For Smart City - China

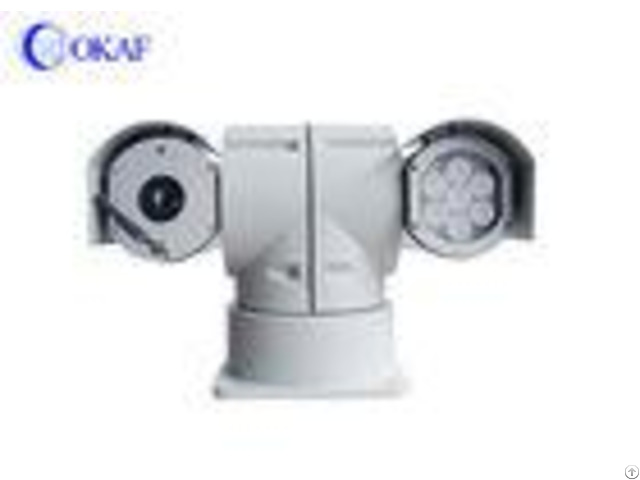

1080P 2 Mega Pixels Full HD PTZ Camera Infrared Analog/AHD/SDI/IP For Smart City Product description: 1 - This PTZ camera integrated with different kinds of HD camera module and HD sensor, achieving HD image capturing.

2 - It uses latest H.

264 video compression algorithm and DSP processing chip and platform, high compression ratio, with high quality image, and it integrates digital decoder inside.

3 - It applies full digital control, flexible programming, drive line compact and simple design, could take rapid positioning and continuous tracking scan, really achieving full range monitoring without blind spot.

4 - The maximum resolution to support 1080P@30fps 5 - Supporting dual stream and HD capture 6 - Supporting variety of HD Platform connection 7 - It can be used on car monitoring.

DC11V-DC18V 8 - Weatherproof design, high die-cast aluminum casing, work temperature, -35~+55., with sun-shield housing and wiper 9 - With infrared LED range up to 100 meters, it could catching image promptly at night.

10 - 360Continuously rotation, upward angle +90~ -90, no blind spot.

11 - Pan preset speed 100/S, tilt preset speed 80/S, with 256 preset positions, 6 cruising tracks.

12 - Can be set to auto-cruise, horizontal sc anning, the camera mode and displays the title.

13 - PTZ coordinates, the lens magnification display function.

14 - PTZ coordinates, the lens magnification display function.

15 - Car-monitoring shock absorber for optional Parameters: - - - - PTZ Camera Parameters | Pan preset speed | 120/S(manual control 080/S) | Tilt preset speed | 60/S(manual control 040/S) | Pan range | 360 | Tilt range | 9090 | Electric machinery | stepping motor (belt gearing) | Preset positions | 256 Preset positions | Control Way | RS485(IP and SDI PTZ camera support RS485 and RJ45 dual- control protocol) | Baud rate | 2400Bps~19200Bps | Control protocol | Pelco-D/Pelco-P | Chroma | 850nm | Distance | 100m | Infrared light | 3W*7 | Audio input/output | Support | Alarm Input/ Output | Support | Operating temperature | 35C~65C | IP Grade | IP66 | Power Supply | DC10.5V~DC18V(5A) | Weight | 7KG(net weight) | IP Movement | Model | 20IP | 30IP | Imaging sensor | 1/2.8inch ExmorCMOS | 1/2.8inchExmorCMOS | Effective pixels | 2.1 mega pixels | 3 mega pixels | Lens | 20X optical zoom f=4.7 -94.0mm (18.20.30X optional) | Min.

illumination | 0.095 lUx (F1.6, ICR open) | Frame rate | 25FPS & 30FPS | Double stream | H.

265/H.

264 | SDK Docking | standard ONVIF protocol, support SDK secondary development | SDI/AHD Movement | Model | SDI | AHD | Imaging sensor | 1/2.5inch CMOS | 1/4inch CMOS | Effective pixels | 30X 3 mega pixels (decided by movement) | 36X 2 mega pixels (decided by movement) | Frame rate | 60FPS & 30FPS | 30FPS | - - - -
