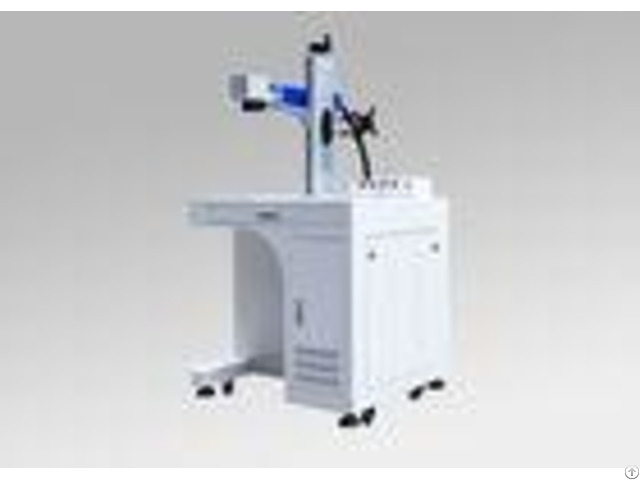

20w 30w 50w Desktop Fiber Laser Marking Engraving Machine For Metallic - China

20w 30w 50w Desktop Fiber Laser Marking Machine Features and principle: Fiber laser using an integrated overall structure, and no any pollution, and air cooled power coupling loss, with other lasers do not have the high efficiency, long life span and low maintenance properties.

Fiber laser marker laser marking applications with many unique advantages.

Unlike conventional solid-state lasers use a YAG laser media, fiber laser using a long as Yb-doped double-clad fiber laser and high efficiency multimode laser diode pumping.

1 - Excellent beam quality: Compared with the traditional solid laser marking machine, machine output, gathering spot diameter less than 20um.

divergence angle is semiconductor-pumped laser one-fourth.

especially suitable for precise, refined marking.

2 - Very long working life, 100000 working hours and no need maintainance 3 - Very very thinner lines than traditional solid laser marking systerms.

4 - Wide application, could work on NON-METAL and METAL material.

5 - High converstion efficiency of electro-optic, the power consumption of the whole equipment is below 600W, it is only 1/10 of the solid laser marking machine pumped by the lamp.

Technical Parameters: - - - - 20W Fiber Laser Marking Machine | Maxphotonics Fiber Laser Source | Laser Wavelength | 1064mm | Average Output Power | 20W | Pulse width | 8090ns | Modulation Frequency Range | 30~60KHZ | Scanner Head | Maximum Speed | 7000mm/s | Resolution | 0.01mm | Repeat Accuracy | 0.03mm | Marking Software | EZ CAD Control Card + Software | System Properties | Marking Range | 110*110mm | Minimal character | 0.01mm | Minimum Character Height | 0.3mm | Cooling ways | Force-air Cooling | Power supply | 0.5KW/AC220V/50HZ | Working Temperature | 0-40 | - - - - Accessories: Fiber laser marking machine applicable Industries: It is mainly applied to the higher marking precision such as mobile phones buttons, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products, etc.

.

Electrical Engineering and Electrical part and component .

Mobile (Cover, battery, keyboard, I Phone Case) .

Jewellery(Ring, pedeant, bracelet), eyeglass, clocks and craft .

Building materials, PVC pipe .

Car motor car spare part, Insturment and meters and cutting tool .

Pastic case, aviation and aerospace, .

Military product, hardware fitting and accessory, sanitary appliance .

Food and beverage, Medicine package and medical instrument, solar Pv industry Applicable Material: - - - - Material | CO2 Laser machine | Material | fiber laser machine | Wood | | Aluminum | | Acryic | | Stainless Steel | | Fabric | | ABS | | Glass | | Brass | | Coated Metals | | Carbon Fiber | | Ceramic | | Carbon Nanotube | | Delrin | | Cobait Chorme Steel | | Cloth | | Copper | | Leather | | Colored Delrin | | Marble | | Diallyl Phthalate | | Matte Board | | Gless Filled PPEK | | Melamine | | Gless Filled Telfon | | Paper | | Magnesium | | Mylar | | Metal Plated Ceramics | | Press Board | | Molybdenum | | Rubber | | Mild Steel | | Wood veneer | | Nylon | | Fiber Glass | | Polybutylene Terephthalate | | Paintde Metals | | Polysulphone | | Title | | PET | | Plastic | | Santoprene | | Cork | | Silicon Carbide | | Corian | | Silicon Steel | | Anodized Aluminum | | Silicon Wafers | | - - - -
